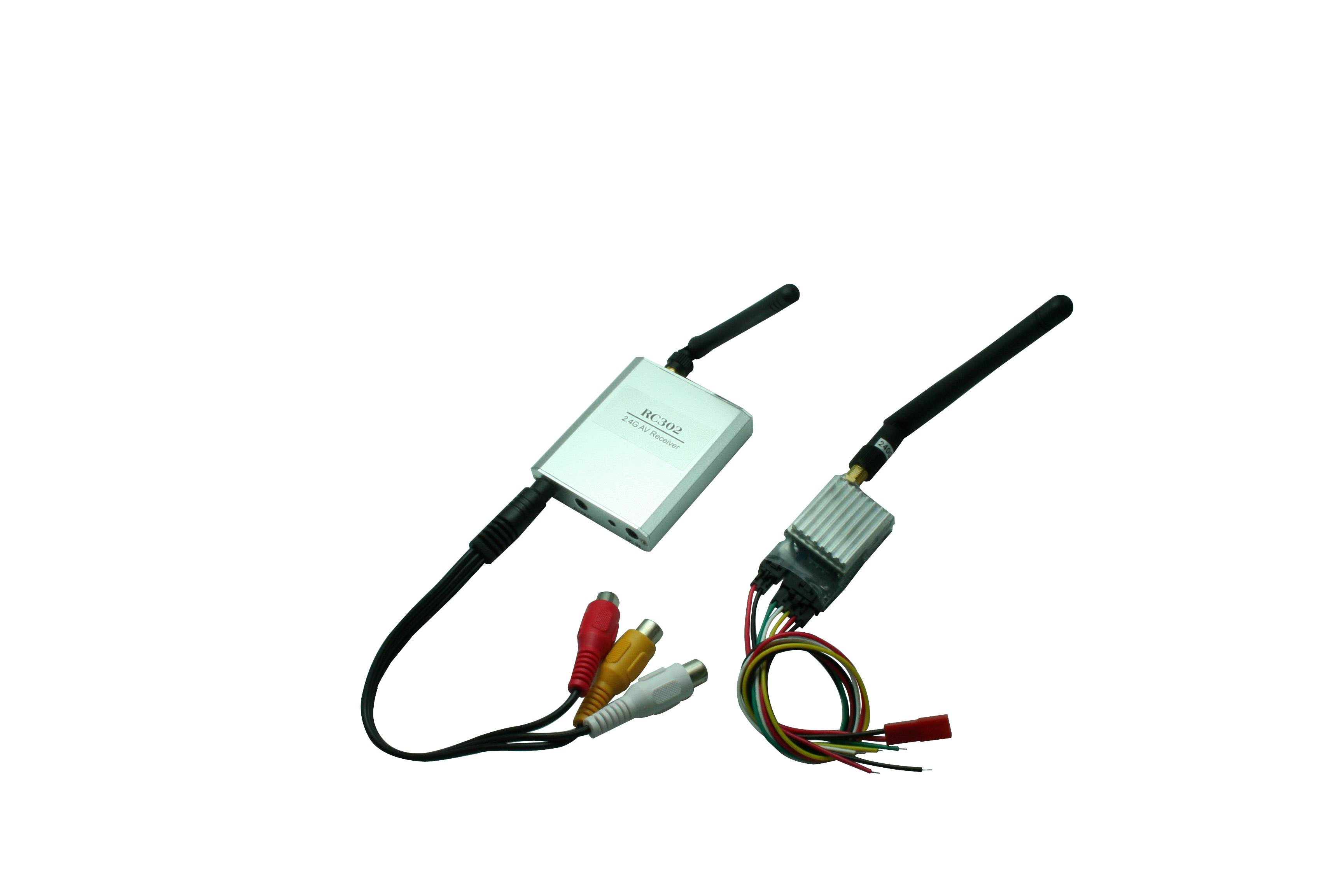

Specificaitons of the transmitter:
Transmitter frequency:2370-2510MHz;8CH
Transmitting Power:500mW/27dBm
Transmitting distance:>4000m(open area)
Frequency control:built-in frequency and phase lock loop
AV input:analog AV signal input
ANT connector:SMA(inside the needle)
power supply:6.5-15 volts
Current supply:300mA
Size:55*26*17mm

Remark:The transmitter's power input is ranging from 6.5-15V,however the voltage outptu from the TX for the camera us 0.5V,lower than the input power.It's suggested to use 3S lipo 11.1V battery.
Note:antennas must be attched before powering on.



Specification of Receiver:
Receiving frequency:2370-2510MHz;8CH
Receiving sensitivity:-90dBm
Frequency control:built-in frequency and phase lock loop
Double lines AV output:analog AV signal output
Antenna connector:SMA(Inside the needle)
Power supply voltage: 6.5-15V
Supply current: 300mA
Dimension: 55*26*17mm(aluminium alloy extrusion profiles)
Remark:The receiver's power input is ranging from 6.5-15V,dual AV output is supported
Note:the av cable uses 3.5mm plug on the receiver RC302




Note:the av cable uses 3.5mm plug on the receiver RC302
