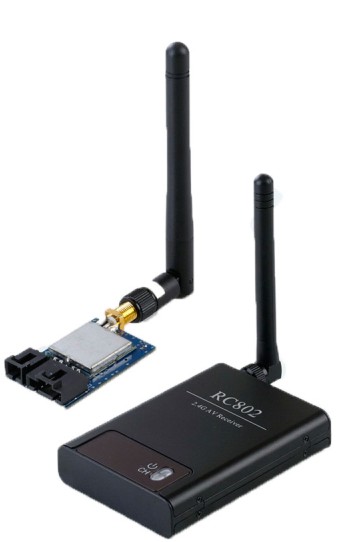

Specificaitons of the transmitter:
Transmitter frequency:5725-5865MHz;8CH
Transmitting Power:20mW/13dBm
Transmitting distance:>200m(open area)
Frequency control:built-in frequency and phase lock loop
AV input:analog AV signal input
ANT connector:SMA(inside the needle)
power supply:6.5-12volts
Current supply:120mA
Size:42*26*8mm

Remark:The transmitter's power input is ranging from 6.5-12V,however the voltage outptu from the TX for the camera us 0.5V,lower than the input power.It's suggested to use 3S lipo 11.1V battery.
Note:antennas must be attched before powering on.



Specification of Receiver:
Receiving frequency:5725-5865MHz;8CH
Receiving sensitivity:-90dBm
Frequency control:built-in frequency and phase lock loop
Double lines AV output:analog AV signal output
Antenna connector:SMA(Inside the needle)
Power supply voltage: 6.5-15V
Supply current: 150mA
Dimension: 75*54*15mm(aluminium alloy extrusion profiles)
Remark:The receiver's power input is ranging from 8-12V,dual AV output is supported
Note:the av cable uses 3.5mm plug on the receiver RC805
