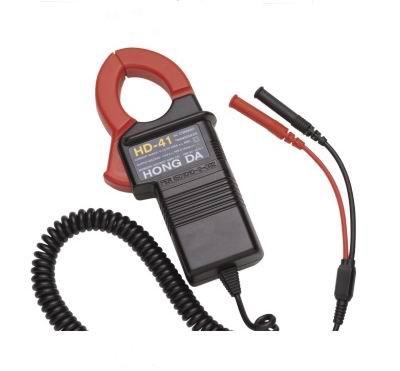

HD-41 Clamp-on meter is a kind of AC current transformer with the function to transform AC Current into VAC. Plug it into any DMM meters with banana-shape input socket (V AC 2V or 20V position) to replace digital clamp meters to measure AC current.



Technic Specifications:
AC Current: 1A~300A
Output Voltage: 1mVa.c to 0.1Amp a.c
Safety Grade: 600VCAT.II IEC-1010
Max Altitude :2000m
Frequency: 50Hz~60Hz
Operation Temp.: -20℃~50℃, relative humidity<80%
Special Function:
Input Impedance: 100Ω
Max Jaw Size: 30mm
Max Lead Size: 29mm



General Specifications:
Meter Color Red+Black-gray
Meter Weight 220g
Meter Size 80×156×35mm
Accessories Test lead, battery, test folder, manual
Inner Package Color box
Quantity 50pcs
Carton Size 370×290×570mm
Gross Weight 21.5kg
