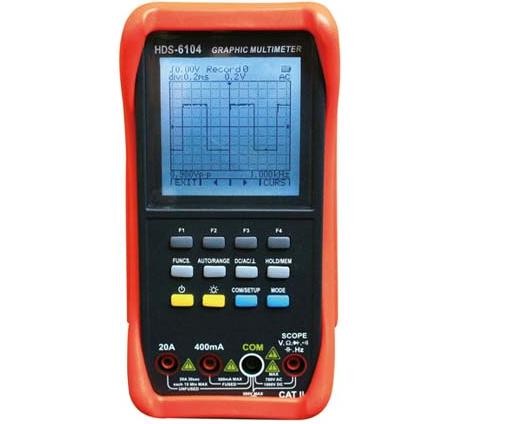

1.Oscilloscope graphical function,single channel

Vertical sensitivity:10mV-100V/div

Time base range:0.2us-10s/div



2.Oscilloscope bandwidth:DC-10MHz

Sampling rate:50Ms/s.



3.Oscilloscope display:128X128 lattice FSTN, wide visual angle LCD,area 71.7X 71.7mm, white backlight.



4.The triggering electrical level and the slope adjustable



5.Multimeter display:3-3/4 digits (4000 count),with relative value measurement, data hold, peak value hold.



6.Multimeter function:DC voltage/current,real effective value(TRMS) AC voltage/ current,resistance,capacitance,frequency,duty,dB,conductance,diode and continuity test



7.Oscilloscope auto time base,sensitivity,setup multimeter auto range switch,over range indication



8.Save and read out 50 waveforms and relative parameters and 50 measurement value



9.Menu operation,auto power off



10.Li-ion build-in and rechargeable battery,AC adapter /charger. Economical and saving money



11.Operational RS-232/USB interface build-in,Windows95/98/2000/ME/XP compatible software.



12.Brace built-in,complete meter include,latex jacket,spare fuse,test lead,crocodile clamps





DC Voltage 400mV/4V/40V/400V/1000V
AC Voltage 400mV/4V/40V/400V/700V
DC Current 40mA/400mA/4A/20A
AC Current 40mA/400mA/4A/20A
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ
Capacitance 51.2nF/512nF/5.12nF/51.2μF/100μF
Frequency 10Hz~5MHz
Max Display 3999
Meter Color Red+Ron-gray
Meter Weight 380g
Meter Size 205×100×60mm
Inner Package Color box
Accessories Test lead, crocodile clamps, manual, battery, warranty card
