auto range meter HD6509
Products Visitors:469

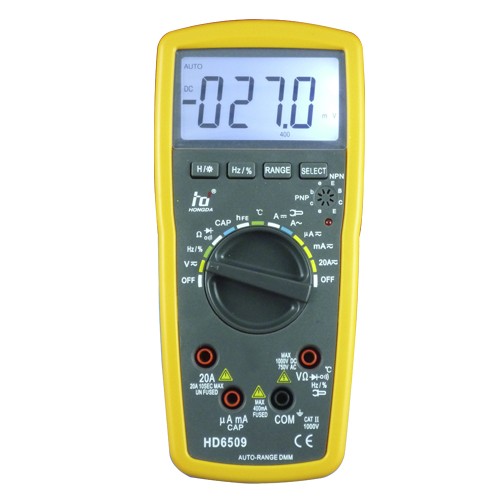

- Product Name:auto range meter HD6509
- Model:HD6509
- Size:182*84*36mm
- Package:40 pieces per carton
- Download:auto-range-meter-HD6509-32052.pdf
;){kind=small}
Products description:
Specifications
|
Basic function
|
Range
|
Basic accuracy
|
|
DC Voltage
|
400.0mV
|
±(0.5%+2)
|
|
4.000V/40.00V/400.0V/1000V
|
±(0.5%+5)
|
|
|
AC Voltage
|
400.0mV/4.000V/40.00V/400.0V/750V
|
±(0.8%+3)
|
|
DC Current
|
400.0mA/4000mA/40.00mA/400.0mA
|
±(1.2%+3)
|
|
20A
|
±(2.0%+5)
|
|
|
AC Current
|
400.0mA/4000mA/40.00mA/400.0mA
|
±(1.5%+5)
|
|
20A
|
±(3.0%+7)
|
|
|
Resistance
|
4.000KW/40.00kW/400.0kW/4.000MW
|
±(0.8%+1)
|
|
400.0W/40.00MW
|
±(0.8%+3)/±(2%+2)
|
|
|
Capacitance
|
100mF
|
±(3.0%+6)
|
|
Frequency
|
10MHz
|
±(0.1%+6)
|
|
Temperature
|
-40℃ ~1000℃
|
±(1.0%+3)
|
|
DUTY
|
0.1%-99.9%
|
±(1.0%+3)
|
|
AC Transformer
|
DC4000A/AC4000A
|
1.5%
|
|
Diode Test
|
√
|
√
|
|
Continuity Test
|
√
|
√
|
|
HFE Test
|
√
|
√
|
|
Low Power Display
|
√
|
√
|
|
Auto Power Off
|
√
|
√
|
|
Data holds
|
√
|
√
|
|
Backlight
|
√
|
√
|
|
NCV Test
|
√
|
√
|
|
Max Display
|
4000
|
4000
|
General Character
|
Meter color,
|
Red + Ron-gray
|
|
Meter weight
|
274g
|
|
Size
|
182×84×36mm
|
|
Standard accessories
|
Test lead, Battery, Manual, K-type thermocouple probe
|
|
Standard inner packing
|
Color box
|
|
Packing quantity
|
40
|
|
Outer packing size
|
430×325×580mm
|
|
Carton gross weight
|
25kg
|
