auto range meter HD3011
Products Visitors:587
- Product Name:auto range meter HD3011
- Model:HD3011
- Size:155*75*33mm
- Package:60 pieces per carton
Products description:
Technic Specifications:
DC Voltage: 600mV/6/60/600V(auto range)
AC Voltage: 6/60/600V(auto range)
Frequency: 10/100/1000Hz/10/100/1000KHz/10MHz(auto range)
DC Current: 600/6000uA/60/600mA/6/10A(auto range)
AC Current: 600/6000uA/60/600mA/6/10A(auto range)
Resistance: 600/6k/60k/600k/6M/60MW(auto range)
Diode Test: yes
Capacitance: 40nF/400nF/4uF/40uF/400uF/4000uF(auto range)
Continuity Test: yes
Duty cycle: 0.1% - 99.9%
Temperature: -50℃ - 700℃
Withstand Voltage: 3700V AC for 1 min
Range: Auto range
Auto power off: yes 15 mins
Auto Zero: yes
Max Display: 6000
Data Hold: yes
Manual Selection: Function or Range
Relative value display: yes
Max/Min Value: yes
Safety Standard : IEC 61010-1 CAT.III 300V
IEC 61010-2-031
IEC 61326-1
Power Supply : R6P(1.5V)×2
Dimension: 155(L)×75(W)×33(D)mm
Weight : 260g
Accessories : Test lead, manual, warranty card, K-type thermocouple probe
AC Voltage: 6/60/600V(auto range)
Frequency: 10/100/1000Hz/10/100/1000KHz/10MHz(auto range)
DC Current: 600/6000uA/60/600mA/6/10A(auto range)
AC Current: 600/6000uA/60/600mA/6/10A(auto range)
Resistance: 600/6k/60k/600k/6M/60MW(auto range)
Diode Test: yes
Capacitance: 40nF/400nF/4uF/40uF/400uF/4000uF(auto range)
Continuity Test: yes
Duty cycle: 0.1% - 99.9%
Temperature: -50℃ - 700℃
Withstand Voltage: 3700V AC for 1 min
Range: Auto range
Auto power off: yes 15 mins
Auto Zero: yes
Max Display: 6000
Data Hold: yes
Manual Selection: Function or Range
Relative value display: yes
Max/Min Value: yes
Safety Standard : IEC 61010-1 CAT.III 300V
IEC 61010-2-031
IEC 61326-1
Power Supply : R6P(1.5V)×2
Dimension: 155(L)×75(W)×33(D)mm
Weight : 260g
Accessories : Test lead, manual, warranty card, K-type thermocouple probe

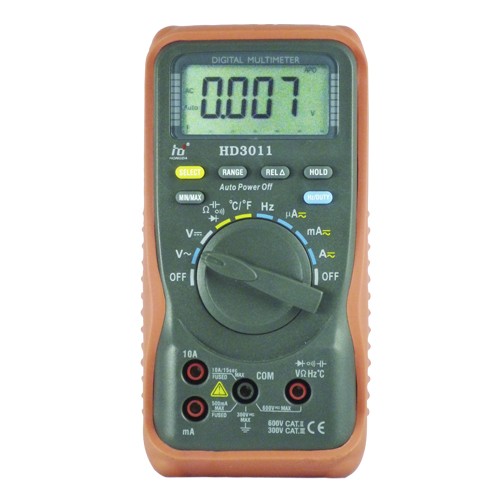

Product Images:
