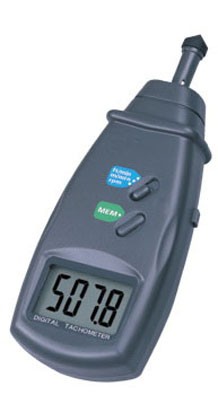

Tachometer DT2235A
;){kind=small}
Products description:
CONTACT TACHOMETER
SURFACE SPEED METER
DT2235A
5 digits 18mm (0.6") LCD
Accuracy: ±(0.05%+1 digit)
Sampling Time: 0.5sec(over 120RPM)
Range Select: Auto-Ranging
Memory: Max. value, Min. value, Last value
Test Range: 6MHz Quartz crystal
Power Consumption: Approx 45mA
Time Base: 6MHz Quartz crystal
Time Base Accuracy: 10x10-6(0~50°C)
Measurement:
CONTACT TACH: 0.5~19,999RPM
SURFACE SPEED: 0.05~1,999,9m/min
SURFACE SPEED: 0.2~6,560ft/min
Resolution:
CONTACT TACH:
0.1RPM(0.5~999.9RPM)
1RPM(over 1,000RPM)
SURFACE SPEED:
0.01m/min(0.05~99.99m/min)
0.1m/min(over 100m/min)
SURFACE SPEED:
0.1ft/min(0.1~999.9ft/min)
1ft/min(over 1,000ft/min)
Battery: 4x1.5V AA battery
SURFACE SPEED METER
DT2235A
5 digits 18mm (0.6") LCD
Accuracy: ±(0.05%+1 digit)
Sampling Time: 0.5sec(over 120RPM)
Range Select: Auto-Ranging
Memory: Max. value, Min. value, Last value
Test Range: 6MHz Quartz crystal
Power Consumption: Approx 45mA
Time Base: 6MHz Quartz crystal
Time Base Accuracy: 10x10-6(0~50°C)
Measurement:
CONTACT TACH: 0.5~19,999RPM
SURFACE SPEED: 0.05~1,999,9m/min
SURFACE SPEED: 0.2~6,560ft/min
Resolution:
CONTACT TACH:
0.1RPM(0.5~999.9RPM)
1RPM(over 1,000RPM)
SURFACE SPEED:
0.01m/min(0.05~99.99m/min)
0.1m/min(over 100m/min)
SURFACE SPEED:
0.1ft/min(0.1~999.9ft/min)
1ft/min(over 1,000ft/min)
Battery: 4x1.5V AA battery
