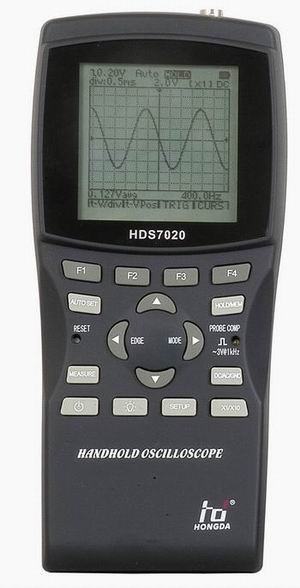

The HDS7020 handhold oscilloscope--its size and the price are only equal to an upscale meter. But it is actually a pocket type oscilloscope with complete function. It has the 10mV/div vertical sensitivity. DC-5MHz up to DC-5ZHz analogue bandwidth, and reaches as high as the 20MHz sampling frequency. It uses the backlight and high-contrast gradient wide angle of view LCD monitor, the triggering electrical level and slope adjustable. It also has the fast automatic setup function. Control all functions by keyboard, and can save 50 waveforms and the related parameter. It may use in the wireless apparatus , the television, the acoustic equipment, the electric power facility, the digital signal installment . each kind of sensory equipment, automobile as well as each kind of signal analysis for automatic equipment. because of its exceptional value for money, this unit is ideal for hobby, service, automotive and development purposes. And the oscilloscope is well suited for educational use in schools and colleges.

Specifications

Max sampling frequency : 20MHz

Input amplifier bandwidth : 5MHz

Input impedance : 1MW//20pF

Max input voltage : 100V peak(AC+DC)

Input coupling mode : DC,AC and GND

Vertical resolution : 8 Bit

Linearity : ±1Bit

LCD Graphics : 129×128 Lattice fstn

DB Test : (0 dB=0.775V)-73dB~+40dB when use theX10

Real virtual value test : 1mV~80V

Peak to peak value and DC range : 1mV~180V

Timebase:10s,5s,2.5s,1s,0.5s,0.25s,0.1s,50ms,25ms,10ms,5ms,2.5ms,1ms,0.5ms,0.25ms,0.1ms,50us,25us,10us,5us,2.5us,1us,0.5us,/div

Inputsensitivity:(ProbeatpositionX1)10mV,20mV,40mV,0.1V,02.V,0.4V,1V,2V,4V,10V/div.

Weight: 415g
