General Description:

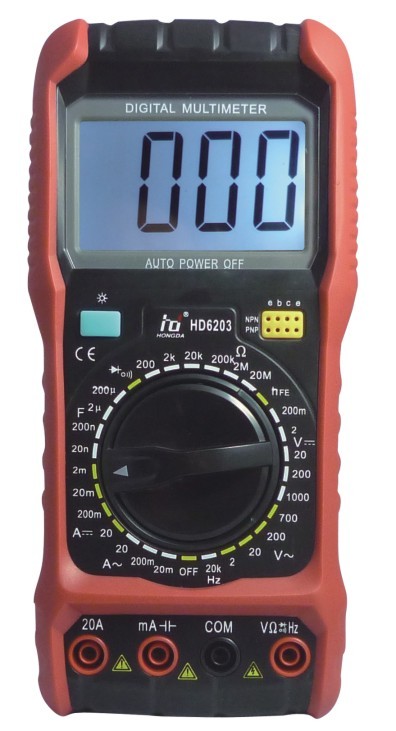

HD6200 series manual/auto range digital multimeter, is with excellent design, charming appearance; LCD with beautiful backlight makes the display more clear. This series meter includes HD6201, HD6202 (3 1/2), HD6203 (4 1/2), full function and convenient operation. All the measurement is taken by the four input jacks at the bottom of the meter except hFE. The VW jack terminus is with PTC temperature sensing component, which can protect the core part of the meter---Function/Range switch, greatly improving the safety and lifespan.

Technical Specifications:

DC Voltage 200mV/2V/20V/200V/1000
AC Voltage 2V/20V/200V/700V
DC Current 2mA/20mA/200mA/20A
AC Current 2mA/20mA/200mA/20A
Resistance 200/2k/20k/200k/2M/20M

Capacitance 20nF/200nF/2uF/200uF
Frequency 20kHz
Diode Test
hFE Test
Continuity Test
Low Battery
Auto Power off
Max Display 19999

General Features:
 1. LCD Size: 70X40mm
 2. Range Selection: manual
 3. Test Speed: 2.5-3 times /sec
 4. Polarity Display: "-"with negative polarity input
 5. Over Range Display: only display "1"
 6. Low Battery Display: yes
 7. Power Supply: 9V(6F22)
 8. Dimension: 190×89×39 mm
 9. Weight: about 300g (without battery)
 10. Operation Environment: 5℃_35℃
 11. Storage Temperature: -10℃_50℃
