Digital multimeter HD6201
Products Visitors:977

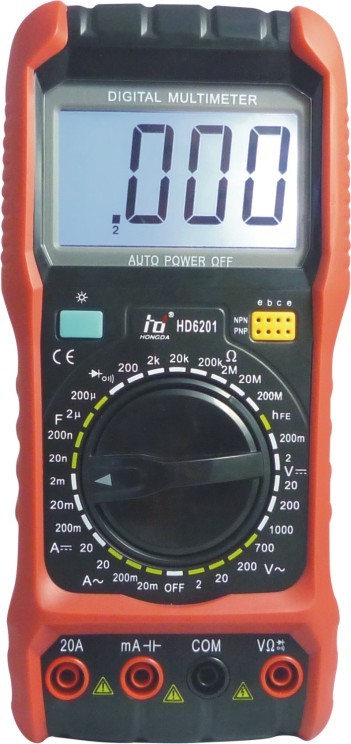

- Product Name:Digital multimeter HD6201
- Model:HD6201
- Size:190*89*39mm
- Package:40 pieces per carton
Products description:
General Features:
1. LCD Size: 70X40mm
2. Range Selection: manual
3. Test Speed: 2.5-3 times /sec
4. Polarity Display: "-"with negative polarity input
5. Over Range Display: only display "1"
6. Low Battery Display: yes
7. Power Supply: 9V(6F22)
8. Dimension: 190×89×39 mm
9. Weight: about 300g (without battery)
10. Operation Environment: 5℃_35℃
11. Storage Temperature: -10℃_50℃
Technical Specifications:
DC Voltage 200mV/2V/20V/200V/1000V
AC Voltage 2V/20V/200V/700V
DC Current 2mA/20mA/200mA/20A
AC Current 20mA/200mA/20A
Resistance 200/2k/20k/200k/2M/20M/200MW
Capacitance 20nF/200nF/2uF/200uF
Diode Test
hFE Test
Continuity Test
Low Battery
Auto Power off
Max Display 1999
AC Voltage 2V/20V/200V/700V
DC Current 2mA/20mA/200mA/20A
AC Current 20mA/200mA/20A
Resistance 200/2k/20k/200k/2M/20M/200MW
Capacitance 20nF/200nF/2uF/200uF
Diode Test
hFE Test
Continuity Test
Low Battery
Auto Power off
Max Display 1999
