Auto range HD3009
Products Visitors:887

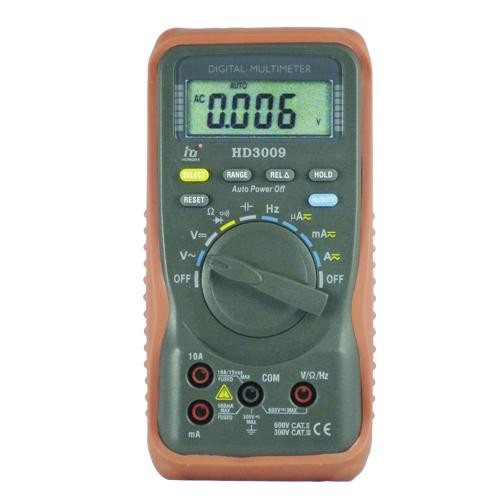

- Product Name:Auto range HD3009
- Model:HD3009
- Size:155*75*33mm
- Package:60 pieces per carton
Products description:
Technic Specifications:
DC Voltage: 400mV/4/40/400/600V(auto range)
AC Voltage: 400mV/4/40/400/600V(auto range)
Frequency: 5.12/51.2/512Hz/5.12/51.2/512KHz/5.12/10MHz(auto range)
DC Current: 400/400uA/40/400mA/4/10A(auto range)
AC Current: 400/4000uA/40/400mA/4/10A(auto range)
Resistance: 400/4k/40k/400k/4/40MW(auto range)
Diode Test: yes
Capacitance: 40nF/400nF/4uF/40uF/100uF(auto range)
Continuity Test yes
Duty cycle: 0.1% - 99.9%
Withstand Voltage: 3700V AC for 1min
Range Switch: Auto range
Auto power off: yes 30 mins
Auto Zero: yes
Max Display: 4000
Data Hold: yes
Manual Selection: Function or Range
Relative value display: yes
Safety Standard : IEC 61010-1 CAT.III 300V
IEC 61010-2-031
IEC 61326-1
Power Supply: R6P(1.5V)×2
Dimension : 155(L)×75(W)×33(D)mm
Weight : 260g
Accessories: Test lead, manual, warranty card
AC Voltage: 400mV/4/40/400/600V(auto range)
Frequency: 5.12/51.2/512Hz/5.12/51.2/512KHz/5.12/10MHz(auto range)
DC Current: 400/400uA/40/400mA/4/10A(auto range)
AC Current: 400/4000uA/40/400mA/4/10A(auto range)
Resistance: 400/4k/40k/400k/4/40MW(auto range)
Diode Test: yes
Capacitance: 40nF/400nF/4uF/40uF/100uF(auto range)
Continuity Test yes
Duty cycle: 0.1% - 99.9%
Withstand Voltage: 3700V AC for 1min
Range Switch: Auto range
Auto power off: yes 30 mins
Auto Zero: yes
Max Display: 4000
Data Hold: yes
Manual Selection: Function or Range
Relative value display: yes
Safety Standard : IEC 61010-1 CAT.III 300V
IEC 61010-2-031
IEC 61326-1
Power Supply: R6P(1.5V)×2
Dimension : 155(L)×75(W)×33(D)mm
Weight : 260g
Accessories: Test lead, manual, warranty card
