Winch features:
· high hp motor, with powerful torque force.
· 500A solenoid, 10 times life longer than regular ones.
· full steel gears, cold extrusion craft, to meet toughest pulling demand.
· transmission shaft is precision processed, very low noises.
· 100% load-hold BILATERAL brake, no stuck.
· insulated winch design, well working in water.
· 100% quality control on testing pulling capacity and function.
· we guaranty every winch is well workmanship.
· for winch parts due to quality issue we have 100% free parts supply.
· warranty time one year and half.
· we guaranty you fast delivery time.
FAQ 1
What are the advantages of your winch clutch system?
: We have 2 kinds of clutch systems, one is sliding ring gear, the other is key way cam clutch. Unlike traditional sliding ring gear, ours has special guide teeth to ensure easy and quick engagement operation for both professional users and beginners. Key way cam clutch is also called rotating clutch, 360° turning to achieve engagement and disengagement. Gears are made of steel, both clutch systems are very reliable.
FAQ 2
: What are the advantages of your winch brake system?
Traditional brake system is one way load-hold, easily get stuck or slipped in tough recovery conditions. While our brake is with quill roller design, two way load-hold, no stuck or slipping. Therefore, our winch has more flexible installation, and performs immediate action stop. Every winch is tested on pulling capacity and function, good quality is ensured.

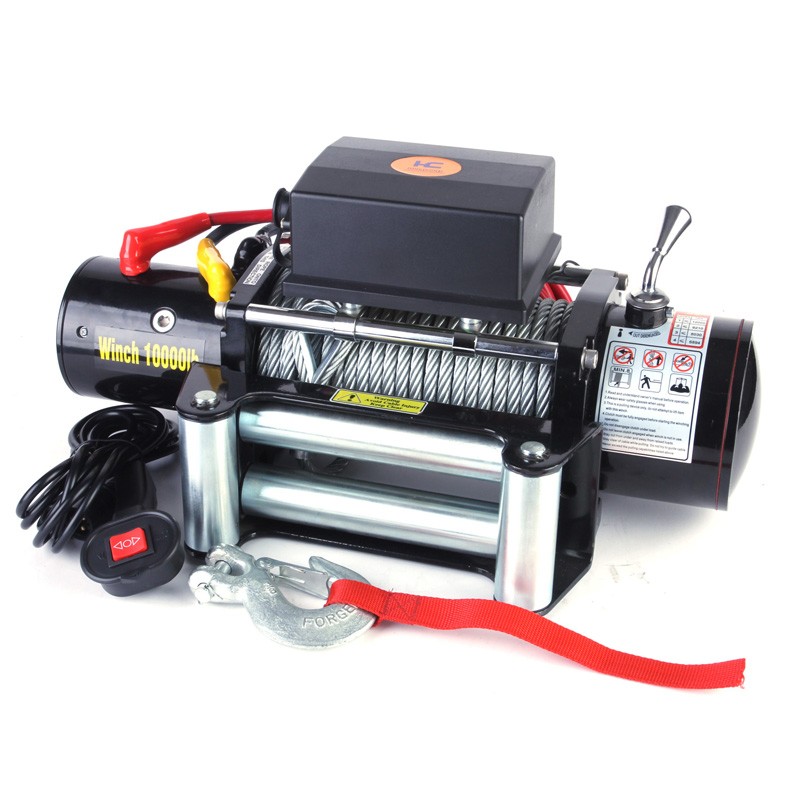

SC10.0 12V or 24V
Single line rated pull |
10000lb(4536kg) |
Motor |
6.0 hp/4.5kw. Series Wound 12V |
Main body |
Sealed |
Control |
Remote switch,12ft(3.7m)lead |
Remote Control |
Included |
Gear train |
3 Stage Planetary |
Gear reduction ratio |
230.4:1 |
Clutch |
Sliding ring gear |
Braking Action |
Automatic braking action in the drum |
Cable |
28m of 9.1mm diameter |
Fairlead |
4-way roller fairlead |
Battery |
Recommended: 650CCA minimum for winching |
Battery Leads |
2 gauge,72"(1.83mm) |
Finish |
Powder coating |
Weight |
N.W. 37kgs G.W 39kgs |
Overall dimensions |
(L*W*H) 538x160x214mm |
Mounting Bolt Pattern |
10” x 4.5” (254x114.3mm) |
10000LBS LINE SPEED AND AMP DRAW (FIRST LAYER)
Line Pull
|
Lbs |
NO LOAD |
2000 |
4000 |
6000 |
8000 |
10000 |
kgs |
909 |
1814 |
2721 |
3629 |
4536 |
||
Line Speed
|
ft/min |
35.50 |
20.60 |
15.19 |
12 |
9.84 |
8.07 |
m/min |
10.82 |
6.28 |
4.63 |
3.66 |
3.0 |
2.46 |
|
Motor Current |
amps |
67 |
131 |
198 |
261 |
320 |
365 |
10000LBS LINE PULL AND CABLE CAPACITY
Layer of cable |
1 |
2 |
3 |
4 |
|
Rated line pull per layer |
Lbs |
10000 |
8000 |
6670 |
5720 |
Kgs |
4536 |
3629 |
3025 |
2595 |
|
Cumulative Cable capacity |
Ft |
21.3 |
40 |
72.0 |
92 |
M |
6.5 |
12 |
22 |
28 |
