FAQ 1
What are the advantages of your winch clutch system?
: We have 2 kinds of clutch systems, one is sliding ring gear, the other is key way cam clutch. Unlike traditional sliding ring gear, ours has special guide teeth to ensure easy and quick engagement operation for both professional users and beginners. Key way cam clutch is also called rotating clutch, 360° turning to achieve engagement and disengagement. Gears are made of steel, both clutch systems are very reliable.
FAQ 2
: What are the advantages of your winch brake system?
Traditional brake system is one way load-hold, easily get stuck or slipped in tough recovery conditions. While our brake is with quill roller design, two way load-hold, no stuck or slipping. Therefore, our winch has more flexible installation, and performs immediate action stop. Every winch is tested on pulling capacity and function, good quality is ensured.

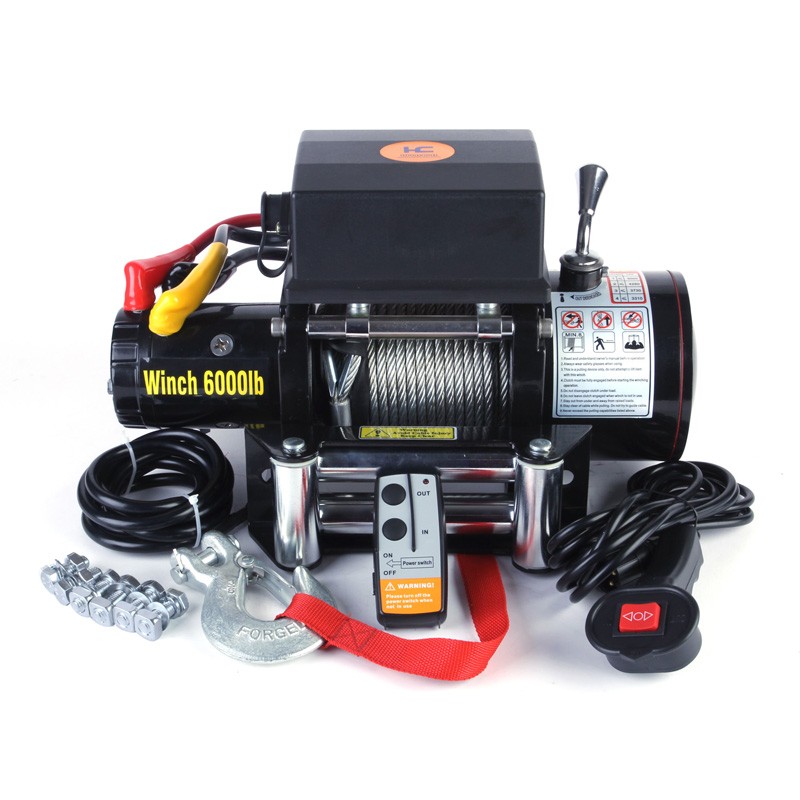

SC6.0 12V or 24V
Single line rated pull
6000lb(3310kg)
Motor
4.5hp/3.3kw,series wound 12V
Main body
Sealed
Control
Remote switch,12ft (3.7m) lead
Remote Control
Included
Gear train
3 Stage Planetary
Gear reduction ratio
230.4:1
Clutch
Sliding ring gear
Braking Action
automatic braking action in the drum
Cable
20m of 7.2mm diameter
Fairlead
4-way roller fairlead
Battery
Recommended: 650CCA minimum for winching
Battery Leads
2 gauge,72"(1.83mm)
Finish
Powder coating
Weight
N.W. 24.5kgs G.W 26.5kgs
Overall dimensions
(L*W*H) 427x160x214mm
Mounting Bolt Pattern
6.5” x 4.5” (166.5x114.3mm)
6000LBS LINE SPEED AND AMP DRAW (FIRST LAYER)
Line pull lb(kg)
Line speed ft/min(m/min)
Current(A)
0
22(6.8)
60
2000(907)
11.5(3.5)
135
4000(1814)
12(3.6)
190
5000(2268)
9.5(2.8)
220
6000LBS LINE PULL AND CABLE CAPACITY
Layer of cable
1
2
3
Rated line
pull per layer
Lbs
6000
4280
3320
Kgs
3310
1941
1495
Cumulative
Cable capacity
Ft
24.6
52.5
65.6
M
7.5
16
20
