How to choose winch?
least needed when vehicle is full loaded around 6000 pound.

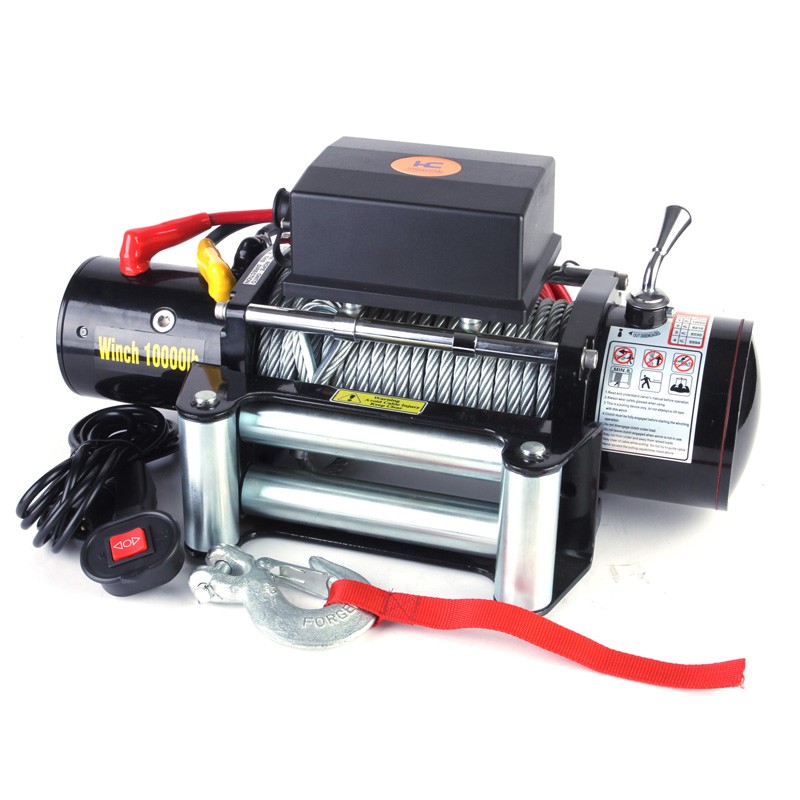

SC10.0 12V or 24V
|
Single line rated pull |
10000lb(4536kg) |
|
Motor |
6.0 hp/4.5kw. Series Wound 12V |
|
Main body |
Sealed |
|
Control |
Remote switch,12ft(3.7m)lead |
|
Remote Control |
Included |
|
Gear train |
3 Stage Planetary |
|
Gear reduction ratio |
230.4:1 |
|
Clutch |
Sliding ring gear |
|
Braking Action |
Automatic braking action in the drum |
|
Cable |
28m of 9.1mm diameter |
|
Fairlead |
4-way roller fairlead |
|
Battery |
Recommended: 650CCA minimum for winching |
|
Battery Leads |
2 gauge,72"(1.83mm) |
|
Finish |
Powder coating |
|
Weight |
N.W. 37kgs G.W 39kgs |
|
Overall dimensions |
(L*W*H) 538x160x214mm |
|
Mounting Bolt Pattern |
10” x 4.5” (254x114.3mm) |
10000LBS LINE SPEED AND AMP DRAW (FIRST LAYER)
|
Line Pull
|
Lbs |
NO LOAD |
2000 |
4000 |
6000 |
8000 |
10000 |
|
kgs |
909 |
1814 |
2721 |
3629 |
4536 |
||
|
Line Speed
|
ft/min |
35.50 |
20.60 |
15.19 |
12 |
9.84 |
8.07 |
|
m/min |
10.82 |
6.28 |
4.63 |
3.66 |
3.0 |
2.46 |
|
|
Motor Current |
amps |
67 |
131 |
198 |
261 |
320 |
365 |
10000LBS LINE PULL AND CABLE CAPACITY
|
Layer of cable |
1 |
2 |
3 |
4 |
|
|
Rated line pull per layer |
Lbs |
10000 |
8000 |
6670 |
5720 |
|
Kgs |
4536 |
3629 |
3025 |
2595 |
|
|
Cumulative Cable capacity |
Ft |
21.3 |
40 |
72.0 |
92 |
|
M |
6.5 |
12 |
22 |
28 |
|
Winch features:
· high hp motor, with powerful torque force.
· 500A solenoid, 10 times life longer than regular ones.
· full steel gears, cold extrusion craft, to meet toughest pulling demand.
· transmission shaft is precision processed, very low noises.
· 100% load-hold BILATERAL brake, no stuck.
· insulated winch design, well working in water.
· 100% quality control on testing pulling capacity and function.
· we guaranty every winch is well workmanship.
· for winch parts due to quality issue we have 100% free parts supply.
· warranty time one year and half.
· we guaranty you fast delivery time.
