Dome IP Camera (PUB-VH701-MPC-IR)

Products Visitors:1067

Product Name:Dome IP Camera (PUB-VH701-MPC-IR)
Size:270*160*135mm
Model:PUB-VH701-MPC-IR
Package:1pc/ctn

Products description: Dome IP Camera (PUB-VH701-MPC-IR)

Video Surveillance Camera, Surveillance Video Camera,

Surveillance Camera Video, Dome IP Camera

Model No.:PUB-VH701-MPC-IR

New Feature:

1): Support IR-Cut

2): 4" compact design

3):Support Gmail/Hotmail function

4): Free DDNS for Remote viewing

5): Freely control alarm sound ON/OFF

6): Freely control alarm record ON/OFF

7): 1.0MegaPixel

Basic Feature:

> H.264 video compression format

> Support two-way audio function

> Freely control upload image to FTP

> Support up to 9 users online simultaneously

> Motion detection alert with snapshots via email

> Allow remote view & record from anywhere anytime

> Multi-level user management with password protection

> Support Mobile phone login from User Interface via browser directly

> Support IE, Safari, Firefox, Google chrome browser or any other standard browsers

Specification:

Model:PUB-VH701-MPC-IR

Image Sensor

Image Sensor

1/4" Color CMOS Sensor

Display Resolution

Primary Stream: 1280*720 (30fps), 640*368 (30fps),320*208 (30fps)

Lens

f: 3.6 mm, F:2.0 (IR Lens) (6mm lens optional)

Mini. Illumination

0.5Lux

Lens

Lens Type

Glass Lens

Viewing Angle

90 Degree (6mm lens is 60Degree)

Audio

Input

1 channel audio input

Output

1 channel audio output

Audio Compression

G.711

Video

Image Compression

H.264, MJPEG

Resolution

1280*720 (30fps), 640*368 (30fps),320*208 (30fps)

Flip Mirror Images

Vertical / Horizontal

Light Frequency

50Hz, 60Hz, Outdoor

Video Parameters

Brightness, Saturation , Contrast ,Hue

Communication

Ethernet Interface

Build in 10/100Mbps,Auto MDI/MDIX , RJ-45

Supported Protocol

TCP/IP HTTP DNS DHCP PPPoE SMTP FTP SSL TFTP NTP ARP/RARP NFS RTSP RTP RTCP.

Compress rate level

128Kbps~4Mbps

Physical

Infrared Light

22 IR LEDs, Night visibility up to 20 meters

Alarm Input

1 Channel on/off Input

Alarm Output

1 Channel relay Output

Dimension

null

Gross Weight

null

Color Box

null

Net Weight

null

Power

Power Supply

DC 12V/2.0A (EU,US,AU adapter or other types optional)

Power Consumption

8 Watts (Max.)

Environment

Operate Temper.

0°C ~ 55°C

Operating Humidity

20% ~ 85% non-condensing

Storage Temper.

-25°C ~ 55°C

Storage Humidity

0% ~ 90% non-condensing

PC System Requirements

CPU

2.0GHZ or above (suggested 3.0GHz)

Memory Size

256MB or above (suggested 1.0GHz)

Display Card

64M or above

Supported OS

Microsoft Windows 2000/XP/Vista/7

Browser

IE6.0/7.0/8.0/Firefox/Safari/Google chrome or other standard browsers

Certification

CE, FCC, RoHS

Warranty

Limited 1-year warranty

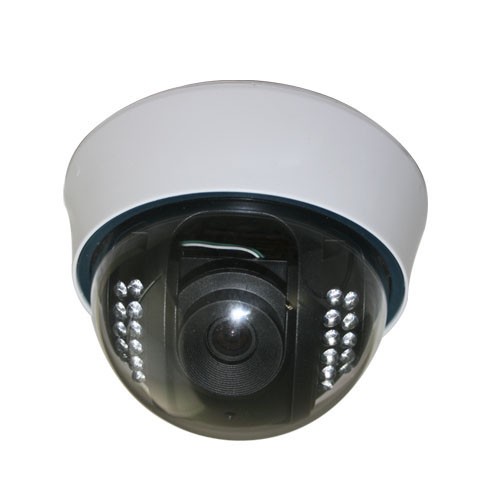

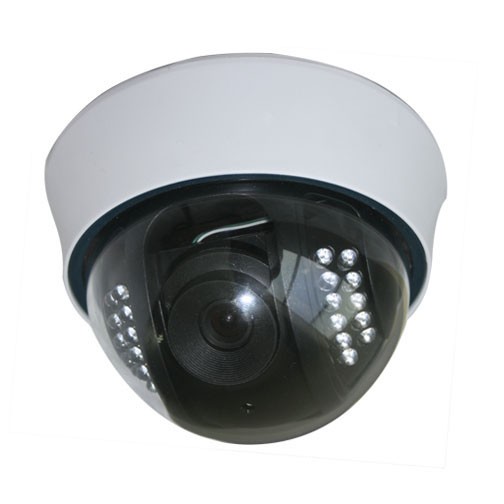

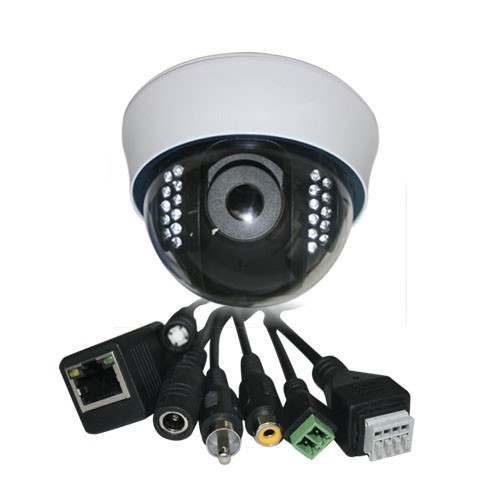

Product Images: Dome IP Camera (PUB-VH701-MPC-IR)
