Box IP Camera (PUB-VH501-WS)

Products Visitors:911

Product Name:Box IP Camera (PUB-VH501-WS)
Package:1pc/ctn
Size:215*83*206mm
Model:PUB-VH501-WS

Products description: Box IP Camera (PUB-VH501-WS)

HD IP Camera, IP Camera HD,IP HD Camera,

Box IP Camera, Outdoor IP Camera

Model No.: PUB-VH501-WS

New Feature:

1): Support Gmail/Hotmail function

2): Support SD-Card up to 32GB.

3): Free DDNS for Remote viewing

4): Freely control alarm sound ON/OFF

5): Freely control alarm record ON/OFF

Basic Feature:

> H.264 video compression format

> SD2.0 standard, maximum storage 32GB

> Built-in Microphone

> Support two-way audio function

> Freely control upload image to FTP

> Support up to 9 users online simultaneously

> Motion detection alert with snapshots via email

> Allow remote view; record from anywhere anytime

> Multi-level user management with password protection

> Wi-Fi compliant with wireless standards IEEE 802.11b/g/n

> Support both WEP; WPA WPA2 encryption for wireless

> Support Mobile phone login from User Interface via browser directly

> Support IE, Safari, Firefox, Google chrome browser or any other standard browsers

Specification:

Model:PUB -VH50-WS

Image Sensor

Image Sensor

1/4" Micron CMOS Progressive Scan CMOS

Display Resolution

640 x 480 Pixels(300k Pixels)

Lens

f: 6mm

Mini. Illumination

0.5Lux

Lens

Lens Type

Glass Lens

Viewing Angle

60 Degree

Audio

Input

Built-in Microphone/1 channel audio input

Output

1 channel audio output

Audio Compression

ADPCM

Video

Image Compression

H.264, MJPEG

Image Frame Rate

30fps(VGA),30fps(QVGA)

Resolution/Frame Rate

640 x 480(VGA), 320 x 240(QVGA)

Flip Mirror Images

Vertical / Horizontal

Light Frequency

50Hz, 60Hz, Outdoor

Video Parameters

Brightness, Saturation , Contrast ,Hue

Communication

Ethernet Interface

Build in 10/100Mbps,Auto MDI/MDIX , RJ-45

Supported Protocol

TCP/IP HTTP DNS DHCP PPPoE SMTP FTP SSL TFTP NTP ARP/RARP NFS RTSP RTP RTCP.

Compress rate level

128Kbps~16Mbps

Wireless Standard

IEEE 802.11b/g/n

Data Rate

802.11b: 11Mbps (Max.), 802.11g: 54Mbps (Max.),
802.11n: 150Mbps (Max.)

Wireless Security

WEP & WPA WPA2 Encryption

Physical

Alarm Input

2 Channel on/off Input

Alarm Output

1 Channel relay Output

Power

Power Supply

DC 12V/2.0A (EU,US,AU adapter or other types optional)

Power Consumption

6~10W(refer to specific product model)

Environment

Operate Temper.

0° ~ 55°C (14°F ~ 131°F)

Operating Humidity

20% ~ 85% non-condensing

Storage Temper.

-10°C ~ 60° (14°F ~ 140°F)

Storage Humidity

0% ~ 90% non-condensing

PC System Requirements

CPU

2.0GHZ or above (suggested 3.0GHz)

Memory Size

256MB or above (suggested 1.0GHz)

Display Card

64M or above

Supported OS

Microsoft Windows 2000/XP/Vista/7

Browser

IE6.0/7.0/8.0/Firefox/Safari/Google chrome or other standard browsers

Certification

CE, FCC, RoHS

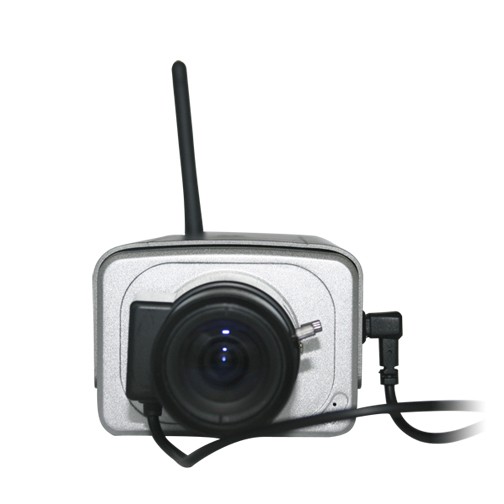

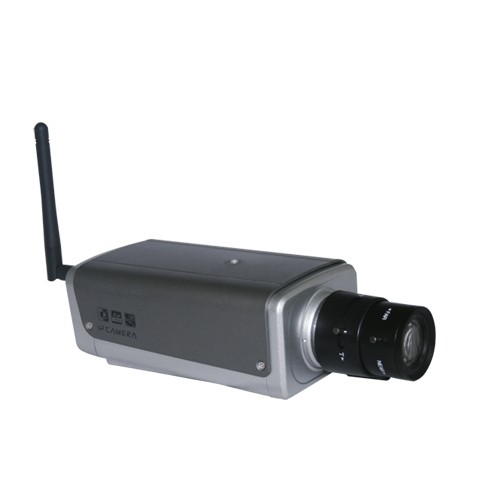

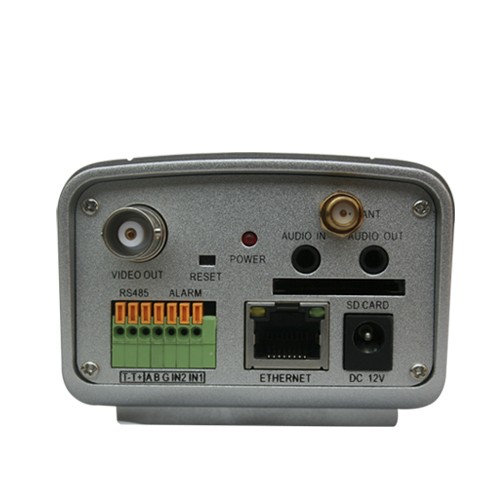

Product Images: Box IP Camera (PUB-VH501-WS)
