Main Technical Specification of UBM Roll Forming Machine
Size: 11000mm × 2300mm × 2300mm
Total Weight: about 20000KG
Main Motor Power: 19.0KW forming power is 7.5kw; bending power is 5.5kw; cutting power is 3.0kw; conical power is 3.0kw
Material of rollers: 45# steel, quenched HRC 58-62
Material of roller shafts: 45# steel, quenched HRC 58-62
Material of cutting blade: Cr12 steel
Step of rollers: 13 steps
Number of Roller: about 350 pieces
Feeding Width: 1000mm
Effective Width: 610mm
Thickness of the coil: 0.6-1.5mm
Control System: automatic
Controlling the straight forming and arching with computer
Gear/Sprocket driving: 13 stations to form
Passive decoiler: Double
Max. Capacity: 5000kgs suitable for trailer carrying
Electric Standard : 380V / 50 HZ / 3 PHASE
Type of cutting: Roll-formed and length-set cutting
Ship Container: 40’ x 1, 20’ x 1
Operating factor of the panel: 61%

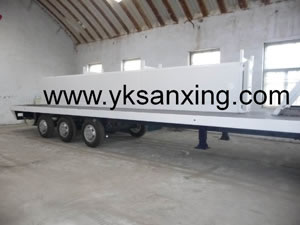

Three Axles, Ten Wheels in total, with 180°turning in one end.
