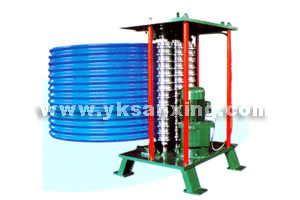

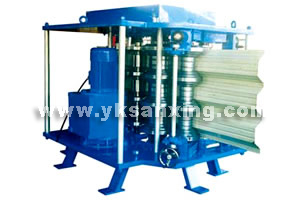

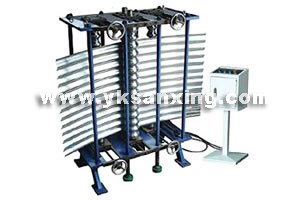

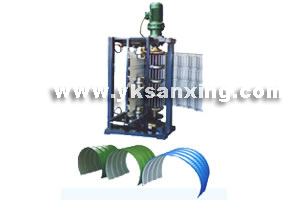

Features of Plate Bending Machine: 1. The roll forming machine is used for bending the flat colored steel sheet into arc shape sheet, with the bending radius of R=1.8m.
2. Minimum Diameter: Ф = 1.2m.
3. Speed of Arc Line: L = 13.5m/min. Product Application of Plate Bending Machine:

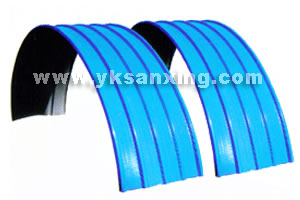

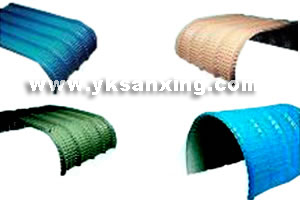

Small-span curving panel produced by this roll forming auxiliary equipment is suitable for designated profile roof panel, which is strong, durable, and fashionable. Such curving panel can save roof purlines and steel frame to lower the cost. Technical Specification of Plate Bending Machine:
1 Size: 950mm × 1200mm × 2500mm
2 Total weight: about1800KG
3 Controlling system: PLC
4 Power: 3KW
5 Working speed: 1400mm/min Main Parameters:
1. Materials Color-coated steel coils / Pre-coated steel coils
2. Profile of Press: C×(0.4~0.8)mm, C is the width of Corrugated sheet already produced
3. Thickness: 0.4~0.8mm
4. Width: Max 100~1250mm
5. Speed: Max 15m/min
6. Machine Size: 1000m×900mm×1200mm (Length Width Height)
7. Motor Power: 2.25kw
