Products description:

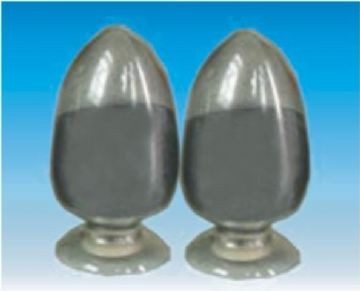

Ion release powder is a kind of grounding material made of inorganic non-metallic conductive material and strong electrolyte. It has significant conductivity, strong penetration, and can improve poor geological environment, and reduce the soil resistivity. It is often combined with  the grounding module and ion grounding rods, and closely integrated with the main grounding body, greatly improving the effect of reducing resistance, so it is an indispensable product in grounding system!

I, Advantages:

  it has very low inherent resistance, good contact with grounding, and it effectively extends the contact area between the grounding body and the earth.

It has strong ion diffusion effects which can improve the surrounding soil resistivity in a short time, and enhance the conductivity of the soil.

It  has a strong absorption, enabling long-term moist of the ground around the grounding body to improve a rebound of resistance caused by the drought conditions. It can keep the best condition in reducing resistance and not be influenced by seasonal changes. It has stable physical properties and has strong pressure resisting ability. The conductive material will not be lost due to rainfall, which is a must condition to maintain the stability of grounding resistance for long standing. It is physically non-toxic, harmless, and has no pollution. It is convenient , and non-corrosive. It is economical and widely used.

II. Main applications: ion release powder, which works as an auxiliary grounding material can keep a good effect in grounding in complex geological conditions, such as rocks, gravel, sand, earth and other conditions. In the rainy season, it absorbs the water of the soil, and store it; when the drought comes, the ion release powder releases ions and maintains the moisture of the soil around the grounding body in order to reduce resistance.

III. Technical parameters:  density 0.96g/cm3 resistivity ρ = 0.75Ω.m Ph  PH = 9.6  impulse current tolerance △ R% = 3.50%  power frequency tolerance △ R% = 1.10%  ion-releasing powder’s corrosion to metal grounding body  (mm / per year) ≤ 0.001mm / per year; the buried grounding body’s corrosion to metal grounding body (mm / per year) ≤ 0.002mm / per year

IV. Construction methods,

 1. Dig the groove as deep as it is needed for grounding body.

 2. Pour the ion-releasing powder into the groove and add proper amount of water.

3, Insert the grounding into the groove.

4, Backfill with fine soil until completely wrap the grounding body and put some water in.

5, Fill the groove completely and tamp it to ensure the good contact of the grounding body and the ground.

Note: The amount of ion-releasing powder used is decided by the concrete conditions of the construction site.

V. Packaging, storage, transport

1, Outer packing:  plastic woven bag,  inner packing :bag film.

2, Stored in warehouses or dry shelters, non-humid.

     3, The product is non-toxic, non-corrosive, and can be transported by air, rail, road,  water.
