Products description:

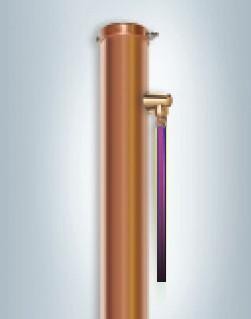

A summary of Electrolytic ion ground rod FL-LD

The elements of Electrolytic ion ground rod :
(1) Ion grounding electrode tube:  Made of high quality copper. The inner part of the tube wall is processed with the latest ceramic coating techniques , which can resist acid, alkali and corrosion. The outer part is coated with a kind of polymer material which resists corrosion and has low resistivity. Holes are designed on the top and bottom of the tube to absorb the moisture and release ion.
(2)The inner ion generator devices:  They are filled in the inside of the tube, have a strong ion release property and have ability to absorb water, conduct electricity, and release ions slowly and for long.
(3) External filling material : It can resist corrosion, absorb water, keep moisture, solidify, penetrate and improve soil condition. Interacting with the ion released from the tube, it can constantly improve the conductivity of the surrounding soil so as to play the role of grounding and reducing resistance.

The working principles :

  The internal and external parts of electrolysis ion ground system are equipped with two kinds of anion filling materials. External material has strong absorption and adsorption ability and are good at cation exchange. It consists of some materials which can reduce resistance, resist corrosion, and can not influenced by temperature changes and can withstand the high voltage attack. The internal material consists of special electric ion compounds, which can absorb moisture in the soil. It will release the active electronic ions into the soil effectively, thus promote the function of the conductor , and keep the resistance stable. It is valid for more than 30 years.

   Experiments show that the high resistivity of the soil is caused by the lack of direct free ions which play a helpful conducting role. Electrolysis ion ground system has reversible slow-release filling material, which can absorb or release water. In this way, the ions can be effectively released into the surrounding soil. Then the grounding electrodes become a ion generator, which improves the soil conditions to reach the goal of reducing resistance.

   The internal and external materials of grounding electrodes affect each other to reduce the resistivity of the soil, and at the same time form an area of controlled release between the grounding electrodes and the soil, which can increase the contact area between grounding electrodes and soil. Then it reduces the contact resistance between them and improves the distribution of electric field in the land. The backfill has good permeability and can permeate deep into the earth and fissure, form a net like root, and increase the discharging area.

The technical advantages :
1, The auto-adjustment function of the device is strong, which constantly adds the electrode conductive ions to the soil around, improving the resistivity of surrounding soil.
2, The electrode units are made of corrosion-resistant alloy material. The backfill is made up of physical material which resists corrosion and high voltage attack. It  greatly extends its life.
3, The backfill is mainly made of physical and chemical substances which has strong  absorption, adsorption and ion exchange ability. It can closely combine with surrounding soil, reduce the resistance and conduct the electricity of lightning efficiently.
4, The backfill contacts the soil completely to reduce the resistance greatly. And it has good mobility and permeability, increases the contact area with the soil and then extend the discharging area.
5, The electrode units are made of low magnetic permeability material, which is good at resisting lightning attack.
6, Due to its excellent ground effects and strong regulatory function,  it is mainly used in cities with highly dense buildings .
7, Due to its excellent ground effect, it occupies a small area, needs a small amount of construction, and saves material.
8, All the materials used are non-toxic and pollution-free, so it is a green product.
