four door access control board with RS232/485

Original Image

Products Visitors:509

Product Name:four door access control board with RS232/485
Model:ACB-R04
Size:160mm *106mm
Package:24x13.5x5.5cm

Products description: four door access control board with RS232/485

four door access control board with RS232/485

Four Door Access Control Panel
	Model No.	ACB-R04
	Product Name	Four Door Access Control Panel
Basic Info
	Unit Size	160mm *106mm
	Unit Packing Way	Brown box
	Unit Packing Size	24x13.5x5.5cm
	Accessories	User Manual, warranty card

Function Introduction
	Conventional Function	offline operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time unclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map etc.
	Professional function	for professional users such as bank,cash house, telecom station, power supply station,prison and plice station: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking;multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation.
	all-in-one-card management system	nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system.
Parameter
	Communication	RS232 RS485 no need jumper and adaptive 9600 bps
	English Software supportable database:	Access and SQL
	Description	Control 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button
	Power Supply	12VDC 4-7A
	Power Consumption of Circuit Board	Less than 100mA
	Input Format of Reader	Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)
	Quantity of Readers	4pcs
	Door Controlled	4
	Door opening time extending setting	1-600 seconds(adjustable)
	Max q ' ty of controller	N*256PCS
		Remark: N denotes q ' ty of computer serial prot or q ' ty of 485hub port, support 256pcs ports
	Operation Temperature	minus 40°C-70°C
	Operation Humidity	10-90 % RH , No Condensation
	Q ' ty of users	20,000 Users
	Q ' ty of Event Buffers(offline)	100,000 event buffers
	Power interruption protection measure	High Speed Memory, Records never lose
	Max Distance from Reader to Controller	100m (suggestion distance 80m)
	Max Distance between Controllers	RS232: Communication Distance less than 13m, suggestion distance is 3m or less
		RS485: bus line max length 1200m, suggestion length 1000m or less, if expansion device added, the distance could be 3000m
		TCP/IP: Depends on net coverage area
	Collocations	PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton
	Alarm for long time door open, ilegal break in, intimidate	Yes
	Fire and alarm linkage	If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm
	Complsive open and close door at long time	Yes
	Open door in remote distance	Yes
	Inter block	Yes
	Anti pass back and tail	No
	Multi-card open door	Yes
	Open long time at specified time	Yes
	Electronic map	Yes
	Urgency locking	Yes
	First card unlocking	Yes
	Unlock based on internal and external validation	Yes
	Keypad (card+passwor, supper password)	Yes

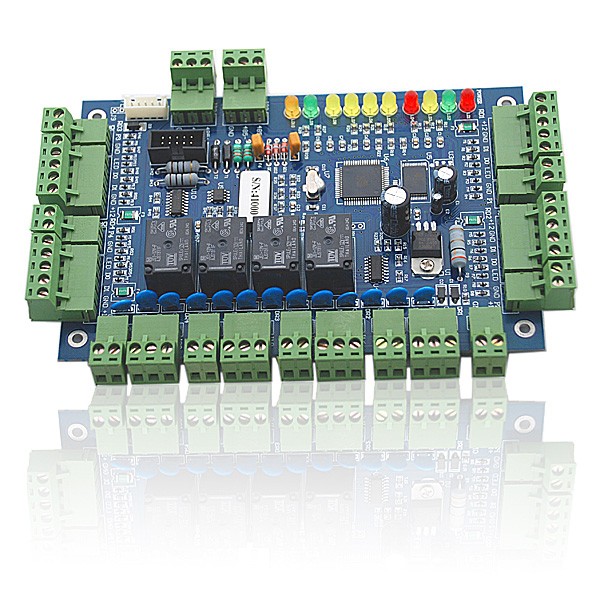

Product Images: four door access control board with RS232/485
