Home > Products Show > Access Control Board > Web Stand Alone Access Controller

Web Stand Alone Access Controller

Original Image

Products Visitors:476

Product Name:Web Stand Alone Access Controller
Model:ACB-WSA-06
Size:11.9cm * 7.2cm
Package:22.2cm * 16.6cm * 5.5cm

Products description: Web Stand Alone Access Controller

Web Stand Alone Access Controller

Model No.

ACB-WSA-06

Product Name

Web Stand Alone Access Controller

PCB Size

11.9cm * 7.2cm

Unit Packing Way

Wiegand brand package (carton)

Case Size

22.2cm * 16.6cm * 5.5cm

Features

General Function Introduction

ACB-WSA-06.WEB stand alone access controller is a device combined the most advanced chip technology and mechanics of communication. User can connect the controller with one reader for entry and one button for exit; also it allows to connect one reader for entry and one reader for exit to realize more safer door access control request.

Operation Interface

Built in Internet Explorer Design; Browser/Server structure; Users don't need to install software and can enter into the management interface directly through internet explorer.

Language

User can switch the language of the management/control interface between Chinese and English freely.

CPU

It adopts 32 bit CPU and can provide f ast,stable,convenient and simple operation platform.

Support

Support offline work. Apply TCP/IP communication. Allow direct connection with computer via network cable. Support LAN ,remote control, and control by mobilephone through internet.

Advanced Technology

We adopt 32bit CPU in this device to ensure fast arithmetic speed, and to establish a high tech platform for future expansion functions.

With browser rver(B/S) structure, built-in internet explorer(IE) technology, user don ' t need to install software and can enter directly into the management interface. User can manage and control the hardware through any piece of computer via network cables, and even realize remote unlocking, remote management, remote monitoring of the door status through internet. And user can control the hardware through a mobile phone if internet accessed to realize remote dynamic control and monitor.

With dynamic buffer management, the device can store the latest 2000 event buffers( records will be cleared if power cut or reset).

This device allows user remote monitor the door status with the help of door sensor, and can remote unlock the door via computer.

Convenience

It supports multi mother card addition and deletion. With the mother card, user can authorize or cancel privilege of other cards. Except add cards by hand, mother card and assigner device, there also support add cards in batch.

With the search tool it has, this device allows user to set the communication parameters automatically. This could be a big help to those people who don ' t know how to use internet.

It has simple back-up tool. Setting parameter and priviledges will be back-uped in computer.

Humanization

Compared to standard stand alone access controller (without LCD), this device can show you the card user ' s name, department the user belongs to; it supports vague search with card number and card user name, and supports event buffer records checking. In cases that there are many card users, this function would be more convenient than standard stand alone access controller.

Affordable

This device is priced between standard stand alone access controller and networked access controller.

Safe

Compared to standard stand alone access controller, this device separates the reader and the controller to individual parts so to realize higher safety request of your customer.

Stability

Wrong connection of reader or data cable will not destroy the device or unlock the door illegally.

Effect inhibition of static electricity and surge from input and feedback interference from electronic locks.

Compatibility

This device is compatible with all RF reader which is with any type of Wiegand stantard communication format available in the market. It supports at most 8 groups of password. User can name for each group of password.

Basic Specification for power supply

ACB-WSA-06A

The power supply can support the controller, reader and one to two additional electronic locks.It has charge-discharge function. If connect with standard 12V 7AH storage battery, when power cut, it can ensure the door access control system work properly.

Specifcation
Door	1
Card Reader	2
Card User q'ty allowed	3000
Department q'ty allowed	Max 100
Event buffer	Lastest 2000 pcs ( Dynamic buffer management. Records will be cleared if power cut or reset )
Communication	TCP/IP
Language	Simplified Chinese and English
Database	Don't need to install software and database
Delay time for unlocking	0-999 seconds
Password	at most 8 Groups allowed
Output Voltage	12VDC
Power	30W
Charge-discharge function	Yes
Color of case	Milk white

Accessories

User Manual, warranty card






Accessories	rranty card

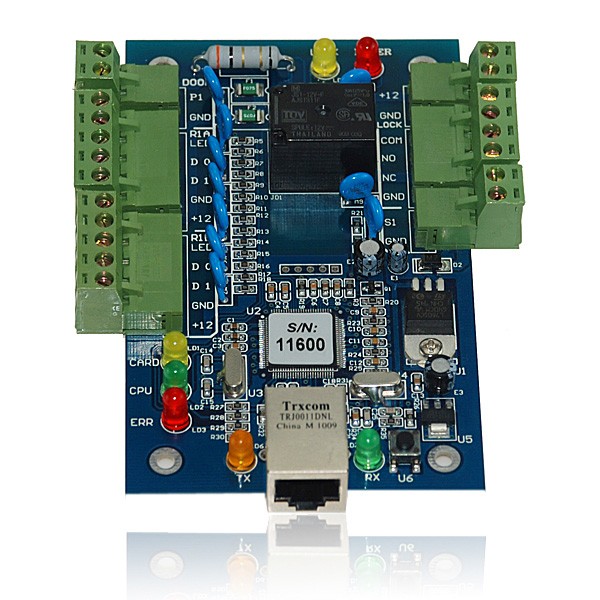

Product Images: Web Stand Alone Access Controller
