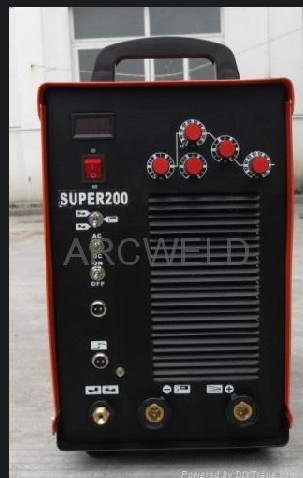

FEATURES of Multi-function AC/DC TIG/MMA/CUT Welding tools SUPER-200:

1.Reactive power correction, MOSFET, AC/DC or pulse output , soft switch, inverter with 100 kHz high frequency;

2.Compact structure, stable welding current, steady and intensive arc, reliable and durable, easy for maintenance;

3.Excellent control performance, multiple functions of TIG, MMA and CUT;

4.The model with P means function of pulse with 9 regulator knobs, and the model without P has only 5 regulator knobs;

5.Thermostatic protection, over-voltage protection, over-current protection, under-voltage protection, pedal control interface for safe operation;

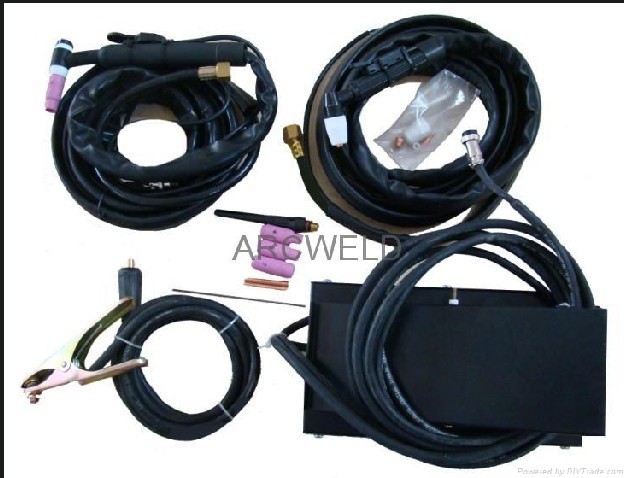

6.Complete accessories: welding torch, cutting torch, welding holder, earth clamp, compressed air regulator, etc.


This is a very compact ALL-IN-ONE Inverter Plasma Cutter / Tig Welder / Arc Welder capable of outperforming all competition (HTP, Miller, Hobart, Thermal Dynamics, Blue Point, Lincoln & Hypertherm). This machine boasts features found in our other top of the line machines such as a 160amp Tig / MMA Welder with ACDC mode with foot pedal, LCD amperage display, 40amp plasma cutter and a generous panel for fine tuning adjustments. You would have to purchase 3 separate machines to do what this ONE machine can do! A 160Amp ACDC Tig Welder would cost you over $1200, a 40Amp Plasma Cutter would cost you at least $500 and a 150Amp Arc Welder would cost you at least $300.

Using this light weight plasma cutter is cheaper than Oxyacetylene after just a few cuts. Less cleaning, less maintenance, less noxious gases, less fire hazard, simply less overall work and a better, cleaner cut. Torch head is low profile for tight spaces. 16 foot long torch cord is protected by a heat resistant sleeve. Why does our plasma cutter boast such thick cutting capacities? Because our machine is designed for Negative potential on the cutting torch and a much higher cutting voltage than Miller, Hobart, Hypertherm or HTP. We beat them everytime, in every competition!

Don't be fooled by the fact that this is a multipurpose machine. It's packed with full features like the separate machines. The Tig welds from this CAT416 are clean and strong. This Tig welder is easier to use than any other Tig welder on the planet! Just flip a switch, set your amperage and weld...It's that simple. You Get all the full features you need. Weld aluminum with AC mode, Weld steel and alloys with DC or pulse mode. With foot pedal and finger switch. This is the best deal you will find for such a high quality, complete machine. The torch trigger can be moved for a custom fit. Can be used in finger or thumb positions. Set includes Short back cap to make torch low profile for tight spaces. 16 foot long torch cord is protected by a heat resistant sleeve.

PH/Freq Hz:1 Phase, 50/60 Hz

Input Power: 4.8KVA/8KVA

Power Factor: 0.93

Efficiency: 85-90%

Built-In High Speed Cooling Fans

Thermal & Overload Protection

Duty Cycle: 60%

No Load Loss: 40 Watts

Protection: Class IP21

Insulation: Class B

Weight: 52 lbs. (64 lbs. Boxed)

Size: 17"W x 17"W x 23"H

8 ft. Power Cord

10 ft. Ground Cord

Includes: Regulator with Pressure Gauge and Built in water separator with stop cock drain. Also includes fiber reinforced hose for air line, hose nipples and hose clamps. All mounting hardware is included.

Output Variable: 15-40 Amps/50-200 Amps

No Load V: 250V

Nozzle Int.: 1.22mm

Cut Thickness: 1/2" Cut

Severance Cut: 3/4" Cut

Cutting Specs:

-3" Per minute @ 3/4" Steel (Severance Cut)

-7" Per minute @ 1/2" Thick Steel

-17" Per minute @ 3/8" Thick Steel

Duty Cycle:

-60% @ 40 Amp Cut -60% @ 50 Amp Cut

-100% @ 31 Amp Cut  -100% @ 42 Amp Cut

Power Usage: 27.3 Amps @ 220VAC

Working V: 120V

Air Pressure: 55-75 PSI

Gas Flow: 2.4 CFM

16 ft. Torch Cord

High Frequency Start

Consumables Included:

-3 Reversible Electrobes

-3 Tips

-2 Splatter Cups

-2 Swirl Rings

Output Variable: 20-160 Amps/20-200 Amps

Power Usage @ Rated Output:

15 Amps @ 220VAC

No Load V: 56V

Welder Materials:

Steel, Stainless, Moly, Ferrous, Aluminum, Copper, Brass, Titanium, etc.

Duty Cycle:

-60% @ 160 Amps /-60% @ 200 Amps

-100% @ 96 Amps /-100% @ 120 Amps

High Frequency Start / AC or DC w/ Pulse Welding

16 ft. Tig Torch Cord

Clean Width: 20-60%

Down Slope Time: 0-5secs

Working V: 28V

Gas Flow: 15-30 Tig / Cutting = 55-75psi 2.4cfm regular air.

Post-Gas Flow: 3sec/6sec/10sec

Consumables Included:

-1 #4 Shield Cup

-1 #5 Shield Cup

-1 #6 Shield Cup

-3 Collets

-1 Collet Body

-1 Long & 1 Short Back Cap

Pre-Gas Flow: 0-2secs Variable

Post-Gas Flow: 2-10secs Variable

Output Variable: 20-150 Amps /20-180 Amps

No Load V: 56V

Duty Cycle:

-60% @ 150 Amps/-60% @ 180 Amps

-100% @ 92 Amps  -100% @ 110 Amps

Power Usage @ Rated Output:

22 Amps @ 220VAC

Working V: 28V

10 ft. Ground Cord

Touch Arc Start
