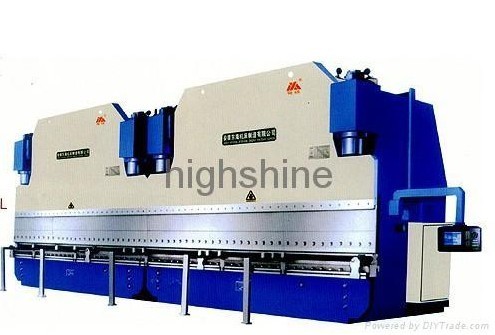

Dual-machine interaction CNC press brake

Products Visitors:841

Product Name:Dual-machine interaction CNC press brake
Model:WC67K series
Package:steel case

Products description: Dual-machine interaction CNC press brake

Product Description

Two WC6K series in same specification are chosen as main machine with dual motors linkage synchro-device,which can work together to process over long work-piece or operate separately to increase the production effeiency.Defection copensation device is fitted too,with digtial display.
Functions& Features
1.Standard two axles control(Y,X)
2.Mechanical torsion synchrony.
3.E200 or MD20 digital control system
4.With standard top&bottom mould
5.With standard front support sheet frame

Model	Nominal Pressure(KN)	length of Table(mm)	Distance between Housings(mm)	Throat Depth (MM)	stroke(MM)	Open Height(MM)	Main Motor(KW)	Weight(KG)	Overall Dimenesions(LWH)(mm)
2-100/3200	2*1000	2*3200	2510	320	120	450	2*7.5	2*6000	237401585*2670
2-160/3200	2*1600	2*3200	2510	320	200	500	2*11	2*10200	237402045*2080
2-160/3600	2*1600	2*3600	2510	320	200	500	2*11	2*11050	241402045*2080
2-160/4000	2*1600	2*4000	3040	320	200	500	2*11	2*11900	245452045*3080
2-160/5000	2*1600	2*5000	3800	500	200	500	2*11	2*16800	255302345*3630
2-160/6000	2*1600	2*6000	4800	500	200	500	2*11	2*23310	265302250*4060
2-250/3200	2*2500	2*3200	2600	400	250	560	2*18.5	2*18400	240002250*4060
2-250/4000	2*2500	2*4000	3300	400	250	560	2*18.5	2*20000	248002250*4060
2-250/5000	2*2500	2*5000	3800	400	250	560	2*18.5	2*22000	258002250*4060
2-320/4000	2*3200	2*4000	3300	400	250	560	2*18.5	2*22000	240602570*4560
2-320/5000	2*3200	2*5000	3800	400	250	560	2*18.5	2*24000	250602570*4560
2-320/6000	2*3200	2*6000	4800	400	250	560	2*18.5	2*27000	260602570*4560
2-400/4000	2*4000	2*4000	3300	400	320	620	2*22	2*29000	240503240*3880
2-500/4000	2*5000	2*4000	3300	400	320	620	2*30	2*32000	240902965*5320
2-500/5000	2*5000	2*5000	3800	400	320	630	2*30	2*390000	250902965*5320
2-500/6000	2*5000	2*6000	4800	400	320	630	2*30	2*46000	260902965*5320
2-630/5000	2*6300	2*5000	3800	400	320	710	2*37	2*67000	260504910*3200
2-630/6000	2*6300	2*6000	4800	400	320	710	2*37	2*75000	260504910*3200
2-800/8000	2*8000	2*8000	6200	350	100	750	2*45	2*10000	295003000*050

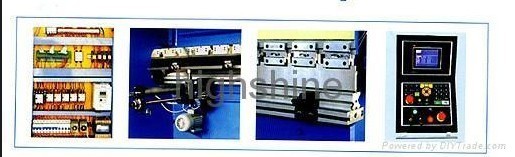

Product Images: Dual-machine interaction CNC press brake
