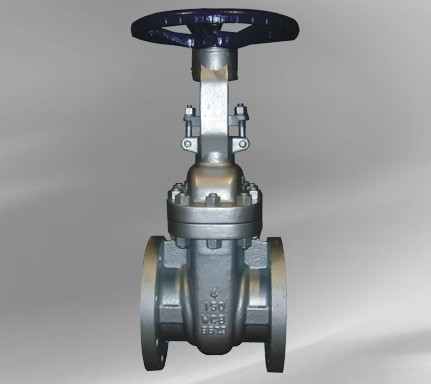

Cast Steel Gate Valve

Pressure: Class 150LB~2500LB

Size: NPS 2"~48"

Material: WCB,LCB,LCC,WC6,C5,C12,CF8,CF8M,CF3,CF3M,CF8C,etc.

Design & Manufacture: API600, API6D, JIS B2073-2083

End flange dimension: ASME B 16.5( for NPS ≤24)\JIS B 2122-2214; ASME B 16.47 series B\API605 or ASME B 16.47 series A\MSS SP-44( for >24)

BW end dimension: ASME B 16.25

Face to face/End to end: ASEM B 16.10,JISB2002

Pressure-temperature ratings: ASME B 16.34

Inspection and Test: API 598,JIS B 2212-2214

Parts and Material list
