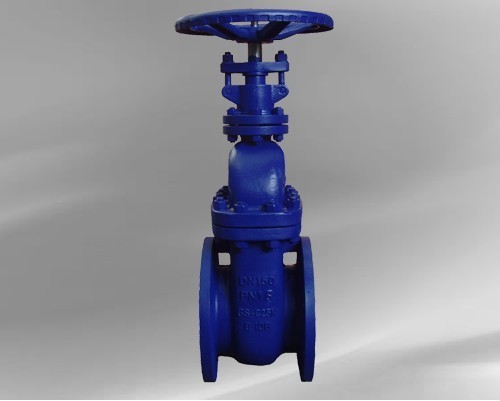

DIN3202 F4 Non-Rising Stem Cast Steel Gate Valve

Pressure: PN10~PN16

Size: DN40~DN4

Material:GS-C25,1.0619,1.4803,1.4408,WCB,LCB,CF8,CF8M,CF3,CF3M,CF8C,ETC

Technical Specification

1. Design and Manufacture:DIN3352

2. Inspection and Test: DIN3202

3. Flanged ends dimension: DIN2543/EN1092-1

4. Butt-welded ends dimension: EN12627

5. Face to face and end to end: DIN3202-F4

Main Parts Material

NO.	Part name	GS-C25 TRIM1	GS-C25 TRIM8	GS-C25 TRIM5	1.4308	1.4408
1	Body	DIN17245 GS-C25+13Cr	DIN17245 GS-C25+STL	DIN17245 GS-C25+STL	DIN17445 1.4308	DIN17445 1.4408
2	Wedge	DIN17245 GS-C25+13Cr	DIN17245 GS-C25+13Cr	DIN17245 GS-C25+STL	DIN17445 1.4308	DIN17445 1.4408
3	Stem	ASTM A182 F6 /420SS	ASTM A182 F6 /420SS	ASTM A182 F6 /420SS	ASTM A182 F304	ASTM A182 F316
4	Stem Nut	Copper Alloy or D2
5	Gasket	SS Spiral Wound W/graphite, or SS Spiral Wound W/PTFE, or Reinforced PTFE
6	Bonnet Bolt	ASTM A193 B7	ASTM A193 B7	ASTM A193 B7	ASTEM A193 B8	ASTEM A193 B8
7	Bonnet nut	ASTM A194 2H	ASTM A194 2H	ASTM A194 2H	ASTM A194 8	ASTM A194 8
8	Bonnet	DIN17245 GS-C25	DIN17245 GS-C25	DIN17245 GS-C25	DIN17445 1.4308	DIN17445 1.4408
9	Yoke Bolt	ASTM A193 B7	ASTM A193 B7	ASTM A193 B7	ASTEM A193 B8	ASTEM A193 B8
10	Yoke Nut	ASTM A194 2H	ASTM A194 2H	ASTM A194 2H	ASTM A194 8	ASTM A194 8
11	Gasket	SS Spiral Wound W/graphite, or SS Spiral Wound W/PTFE, or Reinforced PTFE
12	Yoke	DIN17245 GS-C25	DIN17245 GS-C25	DIN17245 GS-C25	DIN17445 1.4308	DIN17445 1.4408
13	Gasket	SS Spiral Wound W/graphite, or SS Spiral Wound W/PTFE, or Reinforced PTFE
14	Stem Packing	Braided Graphite or PTFE
15	Gland	A182 F6	A182 F6	A182 F6	A182 F304	A182 F316
16	Eyebolt Bolt	A193 B7	A193 B7	A193 B7	A193 B8	A193 B8
17	Gland Nut	A194 2H	A194 2H	A194 2H	A194 B	A194 B
18	Pin	1025	1025	1025	SS	SS
19	Gland Flange	DIN17245 GS-C25	DIN17245 GS-C25	DIN17245 GS-C25	DIN17445 1.4308	DIN17445 1.4408
20	Nut	A194 2H	A194 2H	A194 2H	A194 B	A194 B
21	Hand wheel	Ductile iron or Carbon steel

Main Dimension and Weight
