Main function and characteristic,

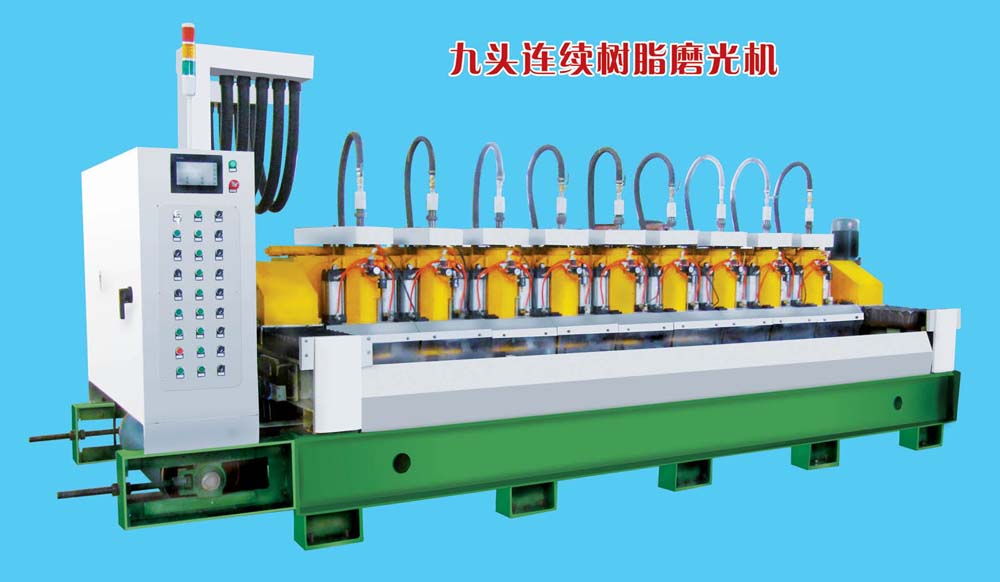

Hiersun series continue resin abrasive polishing machine with 9-12 head, This machine is mainly for slab polishing.The structure is reasonable, steady performance, high work efficiency. With the import PLC controlling system, text display is controlled intelligence.

1.      Out airtag ,long life using, lower hazard rate, lower  maintenance cost, etc advantage.

2.      With the best quality belt with famous brand, thickness accord,promise the thinckness of the slab.

3.      Belt move and bridge move is controlled with the automatic controlling system

4.      With lower power (7.5kw single head),lower cost , cost is only 0.6USD per square meter, Capacity is 38 square meter per hour. The brightness for G3786 can catch up 85 degree.

Technical data

 Processing width: max 900mm

Processing thickness: max30mm

Grinding Heads :9-12

Capacity:150-300 square meter per 8hours

Total power:72kw

Grinding head power:9x7.5kw

Belt move power1.5kw

Bridge move power 3kw

Belt move speed:600-2200mm/min

Pressure: 0.6-0.8Mpa

Cooling water pressure:min 0.15Mpa

Consumption water for single grinding:25L/min

Machine size:6000*2200*2100mm
