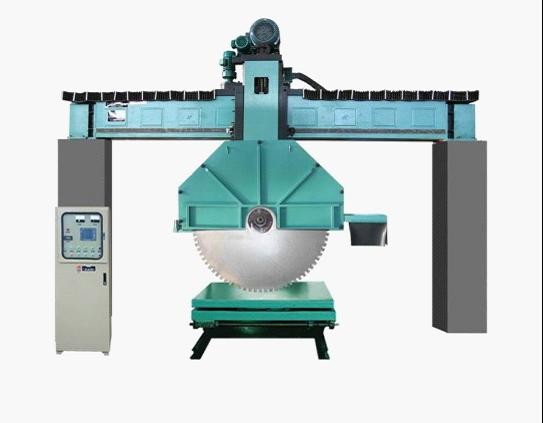

QJS Series Bridge Diamond Disc Stone Sawing Machines are mainly used for cutting granite and marble.
1\ These series machines have reasonable structure and stable working conditions, the usage cost is low and cutting efficiency is high, the cutting surface is smooth and clean, with high ration of finished products, no mechanical breakage and no rust erosion.
2\ These series machines can be used for cutting over
3\ These series machines are easy to operate and safe to use depending on the interlocking and safety devices in automatic electric parts. The controlling system has two types of manual and automation. According to different hardness of stone, the feeding speed of carriage and vertical feeding of saw disc can be adjusted.
4\ Adopted with diamond cutter and high speed grinding technology, these series machines have the features including high cutting efficiency, long usage life of blade and good cutting quality.
Main Parameters:
Model (QJS) |
90 |
120 |
160 |
180Ⅲ |
220 |
260/3 |
|
Maximum diameter of disc (mm) |
900 |
1200 |
1600 |
1800 |
2200 |
2600 |
|
Maximum cross stroke of saw disc |
2300 |
2600 |
3100/3600 |
3600 |
4800 |
||
Maximum vertical stroke of saw disc |
520 |
850 |
900/1100 |
1100/1300 |
1400 |
||
Area of trolley (L*W) (mm) |
1310*1310 |
1700*1700 |
2000*2000 |
||||
Total capacity (mm) |
16.1 |
21.5 |
24.6 |
32.6 |
40 |
40.7 |
|
Main motor (kw) |
15 |
18.5 |
22 |
30 |
37 |
37 |
|
Up-down motor (kw) |
0.55 |
1.1 |
1.5 |
1.5 |
|||
Feeding motor (kw) |
0.55 |
1.5 |
1.5 |
2.2 |
|||
Overall dimension |
L |
4500 |
6800 |
7300 |
1800 |
9300 |
|
W |
5150 |
5150 |
5150 |
51550 |
5150 |
||
H |
4000 |
5210 |
5210 |
6000 |
7100 |
||
Weight (kgs) |
3800 |
4300 |
4500 |
7000 |
7500 |
8500 |
We are in a constant pursuit of promoting our products,the apprearance and the technical data of all our products are subject to the real ones
QJS 220 FOB
