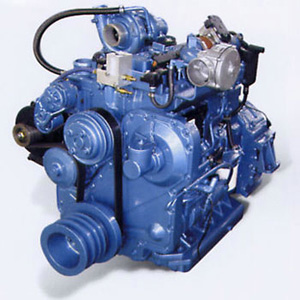

Specifications of 5.3L Natural Gas Engine
SC5DT160/180Q3 Euro Ⅲ
4CT160/180 Euro Ⅱ
Suitable Applications: medium﹣sized bus and special delivery vehicles
Horsepower Rating: 160～200PS
Technical Parameters of 5.3L Natural Gas Engine [CNG Engine]:
| Euro Ⅲ | Euro Ⅱ | ||||
| Model | Unit | SC5DT160Q3 | SC5DT180Q3 | 4CT160 | 4CT180 |
| Fuel | Natural gas CNG | ||||
| Type | 4～Cylinder 4 Stroke, Water cooled | ||||
| Aspiration | Cold turbocharger/TCI | ||||
| Bore×Stroke | mm×mm | 114×130 | |||
| Total Displacement | L | 5.3 | |||
| Compression Ratio | 11:1 | ||||
| Rated Power/ Rated Speed | Kw/r/min | 118/2300 | 132/2300 | 118/2300 | 132/2300 |
| BMEP@Rated Condition | kPa | 1218 | 1297 | 1218 | 1297 |
| Maximum Thermo Efficiency | % | 37 | |||
| Oil Consumption Rate | g/kW.h | ≦0.3 | |||
| Maximum Torque/Speed | N.m/r/min | 580/1500 | 650/1400～1600 | 580/1500 | 650/1400～1600 |
| Noise | dB(A) | ≦98 | |||
| Overhaul Interval | km | ≧400000 | |||
| Overall Dimension | mm | 900(Length)×794(Width)×925(Height) | |||
| Weight | kg | 540 | |||
