Model Number: FP-80-1B-EK

Minimum Order Quantity : 20 Piece/Pieces

Supply Ability: 5000 Piece/Pieces per Month

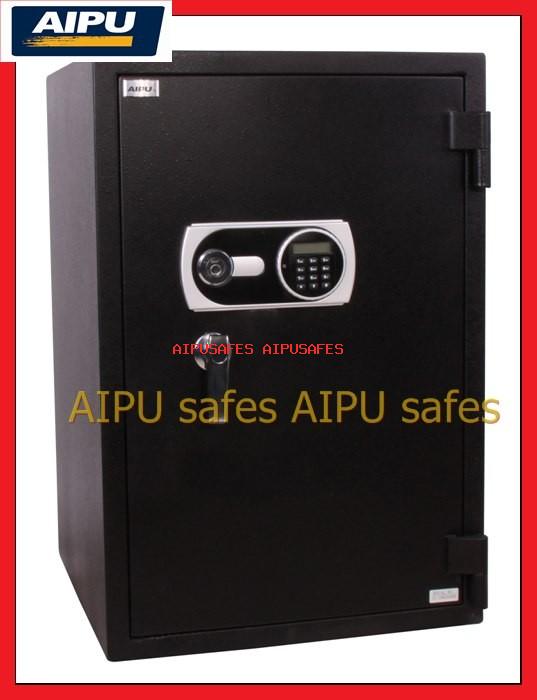

UL 1 hour Fireproof safes with Electronic lock

UL listed Class 350F 1 hour Fire Protection safes withstands up to 1850F(1020C) fire for one hour.

1) Size & Weight : Wheels and wheel skirt or rubber feet height not included.

- ExternalSize (H x W x D): 792 x 531 x 508(mm); 31.2 x20.9 x20.0(inch)

- Internal Size ( H x W x D): 640 x 380x 341(mm); 25.2 x15.0 x13.4 (inch).

- Interior Cubic feet : 2.98ft³

- Net Weight: 130±10kg / 286±20 lb

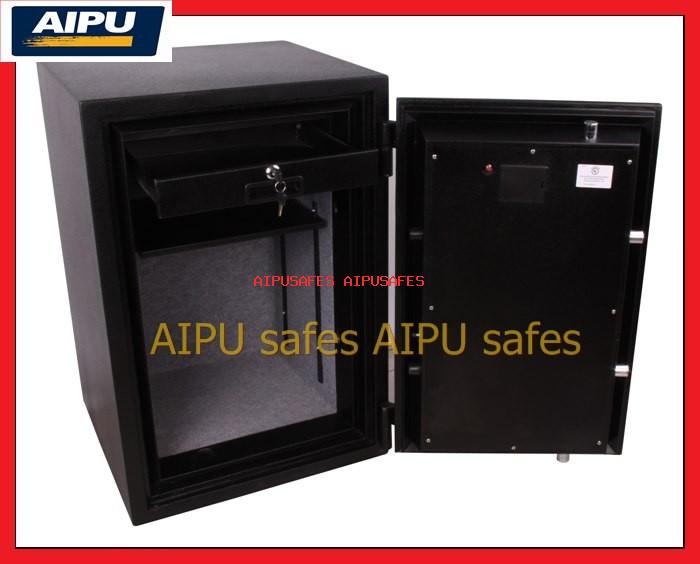

2) Interior and shelving

- 1 adjustable shelf + 1 key locking drawer

- Carpeted walls , key hooks on the door back.

3) Material

 Double wall rust-proof galvanized steel plate body & door  filled with special fire-resistant stuffing material

 Steel thickness : 1mm+1mm for body, 1mm+1.2mm for door

4) Lock & handle

- LCD display pannel push button electronic lock + high security key lock

- 2 user codes , 3~8 digit password , hidden mechanical override key

- Outside power supply battery box can be used when battery drained.

- L-shaped diecast handle

- Lock option corresponding model :

FP-80-1B-EK  CD pannel push button electronic lock +high security  key lock

FP-80-1B-CK  3 wheel mechanical combiantion lock + high security key lock :

FP-80-1B-KK  two high security key locks :

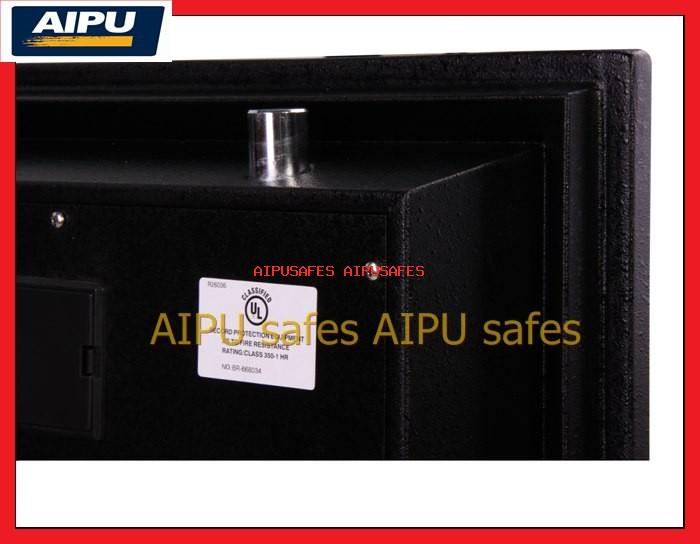

5) Boltwork

- Chrome plated 25mm dim solid steel boltwork ,  Powder coat dealbolts.

- Direction and q’ty of bolt ( Horizental - top - bottom - deadbolt) : 2-1-1-2

- Bolt detent system : Moving bolt will spring out when the door closed.

6) Color and Finish

- Durable texturedblack spray paint finish

- Color option : other color available for order q’ty over than 100 pcs.

7) Accessory

- 4 removable wheels screwed on the bottom of safes for easier delivery . Wheels can be removed for anchoring down.

- One anchor bolt hole (18mm)on the bottom .  One anchoring bolt(12mm)included. .

- Bolt hole is covered with fire material block and carpet when shipping. Block can be removed.

8) Standard option :

- No wheels : Safes comes without removable wheels.

- Customer Logo : Please contact us for MOQ and additional cost.

- More shelf : Please contact us for MOQ and cost.

- Please contact us if you have other needs.

 9) Safes in the same series

1) ** stands for different lock optionsuch as CK , EK , EH

2) We have several other size with or without UL lable require higher minimum Q’ty.
