UL listed Class 350F 1 hour Fire Protection safes withstands up to 1850F(1020C) fire for one hour

Model Number: FDP-38-1B-EH

Minimum Order Quantity : 50 Piece/Pieces

Supply Ability: 5000 Piece/Pieces per Month

UL 1 hour Fireproof safes with Electronic lock

UL listed Class 350F 1 hour Fire Protection safes withstands up to 1850F(1020C) fire for one hour.



1) Size & Weight :

- ExternalSize (H x W x D): 365 x 435 x 400(mm); 14.4 x17.1 x15.7(inch)

- Internal Size ( H x W x D): 252 x 322x 260(mm); 9.9 x12.7 x10.2 (inch).

- Interior Cubic feet : 0.76ft³

- Net Weight: 43±4kg / 94±10 lbs



2) Interior and shelving

- 1 plastic tray

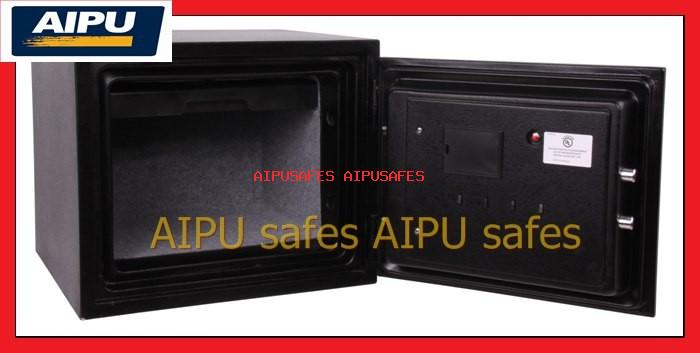

- Carpeted walls , key hooks on the door back.



3) Material

 Double wall rust-proof galvanized steel plate body & door  filled with special fire-resistant stuffing material

 Steel thickness : 0.8mm + 0.8mm



4) Lock & handle

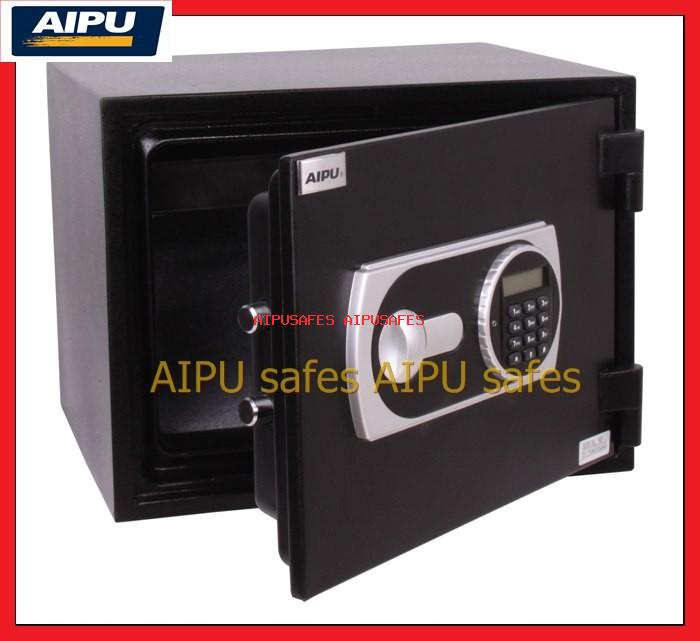

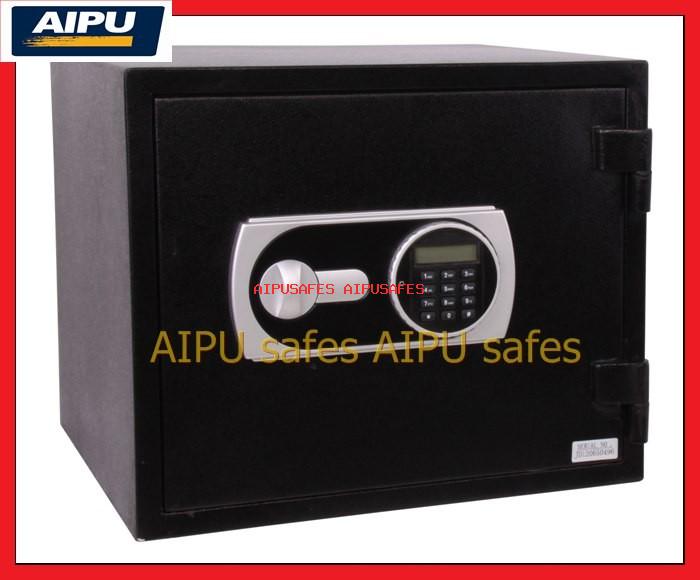

- LCD display push button electronic lock +knob handle.

- 2 user codes , 3~8 digit password , hidden mechanical override key

- Outside power supply battery box can be used when battery drained.

- Lock option corresponding model :

FP-38-1B-EK  LCD pannel push button electronic lock + high security  key lock

FP-38-1B-EH  LCD pannel push button electronic lock +knob handle

FP-38-1B-CK  3 wheel mechanical combiantion lock + high security key lock :

FP-38-1B-KK  two high security key locks :



5) Boltwork

- Chrome plated 18mmdim solid steel boltwork , Painteddealbolts.

- Direction and q’ty of bolt ( Horizental –top – bottom -deadbolt) : 2-0-0-2



6) Color and Finish

- Durable texturedblack paint finish

- Color option : other color available for order q’ty over than 200 pcs.



7) Accessory

- One anchor bolt hole (18mm)on the bottom .  One anchoring bolt (12mm)included.

- Bolt hole is covered with fire material block and carpet when shipping. Block can be removed.



8) Standard option :

- Rubber feet : Safes comes with rubber feet.

- Customer Logo : Please contact us for MOQ and additional cost.

- Please contact us if you have other needs.



 9) Safes in the same series

Model Name	Out side size (HxWxD,mm)			Out side size (HxWxD,inch)			Cubic ft
FP-30-1B-**	305	400	332	12.0	15.7	13.1	0.60
FP-38-1B-**	365	435	400	14.4	17.1	15.7	0.78
FP-45-1B-**	435	365	400	17.1	14.4	15.7	0.78
FP-63-1B-**	632	531	508	24.9	20.9	20.0	2.30
FP-80-1B-**	792	531	508	31.2	20.9	20.0	3.06

1) ** stands for different lock optionsuch as CK , EK , EH

2) We have several other size with or without UL lable require higher minimum Q’ty.
