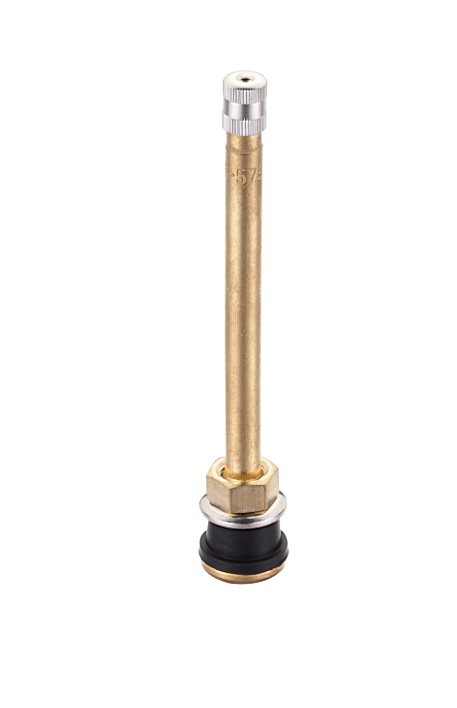

tubeless metal valves clamp-in valves TR573

tubeless metal valves clamp-in valves TR573
Original Image
Products Visitors:475
  • Product Name:tubeless metal valves clamp-in valves TR573

Product Details:
Material METAL
Brand Name Auto Able
Place of Origin Zhejiang, China (Mainland)
Model Number TR573
auto tire valves tubeless tire valves
Payment & Shipping Terms:
FOB Price: US $ 0.1-10/ Piece
Minimum Order Quantity: 1000 Piece/Pieces
Port: NINGBO
Packaging Details: Standard export package
Delivery Time: 15-20days afer confirming the order
Payment Terms: L/C,D/P,T/T
Supply Ability: 5000000 Piece/Pieces per Month

Detailed Product Description



Tubeless Metal Clamp-in Valves
ITEM:TR573
Material: Brass with Nickle Plated, rubber
Standand:TRA,E.T.R.T.O.



Tubeless Metal Clamp-in Valves for Truck and Bus

Specification:


Item: TR573
Material: Brass with nickle plated
Earto No.V3.21.7
Ref Length: 19x115mm
Core: 9002#
Parts:
Rubber Grommet: RG15
Washer: RW8
Nut: HN13

Description:

1.Tubeless metal clamp-in valves for truck and bus of TR573 is made of brass with nickle plated and with special formula rubber in order to resist ozone damage and prevent temperature deterioration caused by rim hole compression, heat and cold.
2. Our products are 100% leak tested without leaking problem.



FOR16(.625dia.) RIM HOLES

TR NO.

ETRTO NO.

REF .Length(mm)

Parts



Core

Rubber Grommet

Washer

Nut

Cap



TR500

V3.21.3

19×55

9002#

RG15

RW8

HN13





TR501

V3.21.2

19×42





TR502

64MS15.7

19×64





TR570

V3.21.4

19×84

VC2



TR571

V3.21.5

19×90

or



TR572

V3.21.6

19×100





TR573

V3.21.7

19×115





TR574

V3.21.8

19×131





TR575

V3.21.1

19×33





TR570C

V3.21.9

19×84/90°or27°





TR571C

V3.21.10

19×90/90°or27°

VC2



TR572C

V3.21.11

19×100/90°or27°





TR573C

V3.21.12

19×115/90°or27°

VC3



TR574C



19×131/90°or27°





TR500-23

VS-1223R

19×55/23°

VC3



DC570P



22×18







RG7

RW11

HN1



Function:

This valve can be quickly mounted to the rim. It is flexible in nature so it may provide complete air-seal even when it is bent for air service or tire pressure check.

Made with brass with nickle plated to resist ozone damage and prevent temperature deterioration caused by rim hole compression, heat, cold.
