Product Details:
Material
|
metal
|
Diameter
|
<11 Inch
|
Finishing
|
Zinc Plated
|
Brand Name
|
Auto Able
|
Place of Origin
|
Zhejiang, China (Mainland)
|
Model Number
|
V-3,V-4,V-5,VS-6,VS-8,TR416B,TR5991B,TR-435
|
auto tire valves
|
tubeless tire valves
|
Payment & Shipping Terms:
FOB Price:
|
US $ 0.1-10/ Piece
|
Minimum Order Quantity:
|
1000 Piece/Pieces
|
Port:
|
NINGBO
|
Packaging Details:
|
Standard export package
|
Delivery Time:
|
15-20days afer confirming the order
|
Payment Terms:
|
L/C,D/P,T/T
|
Supply Ability:
|
5000000 Piece/Pieces per Month
|
Detailed Product Description

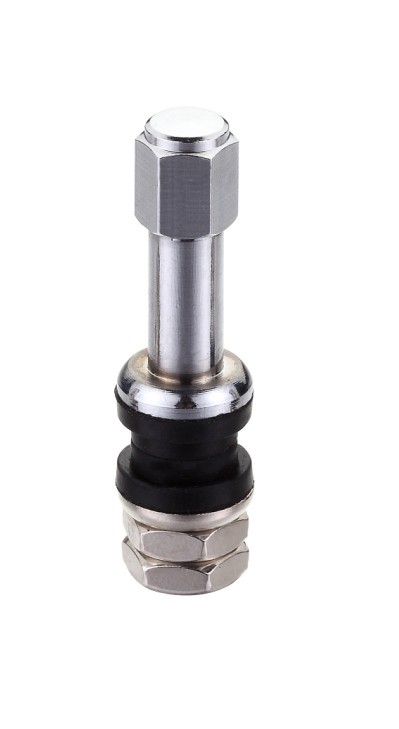

Tubeless Metal Clamp-in Valves
ITEM:V-3,V-5
Material:copper,steel,
Standand:TRA,E.T.R.T.O.
Parts: brass stem, core value
V-3,V-4 Tubeless Metal Clamp-in Valves
Specification:
TR NO.
|
ETRTO NO.
(REF.NO.)
|
REF LENGTH
(mm)
|
RIM HOLE
(mm/in.)
|
PARTS
RUBBER GROMMET WASHER NUT CAP
|
TR5991B
|
WH402
|
19×34
|
Φ11.5/.453
Φ16/.625
|
RG39
RG54
|
RW8
|
HN4
|
AT
|
V-3
|
TR33E,WH23A
|
14×33
|
11.5/.453
|
HRG2×2
|
RW5
|
HN2×2
|
ET/BT
|
V-4
|
TR43E,WH206
|
14×43
|
V-5
|
TR48E
|
14×48
|
V-6
|
TR53E,WH204
|
14×53
|
V-7
|
TR63E
|
14×63
|
V-8
|
TR26A
|
16×34
|
HRG1,HG2
|
RW12
|
VS-8
|
TR26G,PVR43A
|
16×38
|
V-9
|
JS43E
|
16×43
|
VS-8-45°
|
WH303,PVR75A
|
16×53-45°
|
VS-8-90°
|
|
16×63-90°
|
TR6008C
|
TRJF944
|
17.5×34
|
16/.625
|
RG39
|
RW8
|
HN4×2
|
DT
|
PVR152
|
|
16×65-90°
|
11.5/.453
|
RG54
|
RW8
|
HN4
|
ET/BT
|
PVR153
|
|
17×70-90°
|
11.5/.453
|
RG54
|
RW8
|
HN4
|
ET/BT
|
VS-6
|
|
11×40
|
6/.236
|
|
|
|
|
TR435
|
|
19×34
|
11.5/.453
|
RG54
|
RW8
|
HN4
|
ET/BT
|
Description:
The tubeless metal clamp-in valves are made of brass stem, core value and special formula rubber in order to resist to ozone damage and prevent temperature deterioration caused by rim hole compression, heat and cold.
Our products are 100% leak tested without leaking problem.
Function:
This valves can be quikly mounted to the rim. It is flexible in nature so it may provide complete air-seal even when it is bent for aire service or tire pressure check.
Made with brass with nickle plated to resist to ozone damage and prevent temperature deterioration caused by rim hole compression, heat, cold.
