Detailed Product Description

Tire Pressure Monitoring System

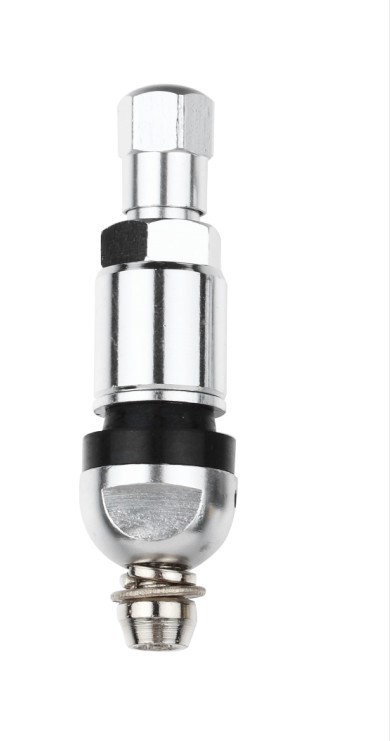

TPMS-10 TUBELESS TIRE VALVE :


1. Function of TPMS tubeless tire valve :

1.1,  Full-time tire pressure monitoring;
1.2,  display the current tire pressure and temperature alternately;
1.3.  low and high  pressure alarm;High-temperature alarm;
1.4,  Rapid leakage alarm;

2. TPMS MAIN FEATURES :

2.1 Reduce Driving Risks
It was reported that an astonishing 75% of all running tires in the USA are under-inflated and 70% of fatal traffic accidents were caused by tire blowouts . With a TPMS , drivers are warned of abnormal tire conditions before it becomes dangerous .

2.2 Improve Fuel Economy
Today's tire designs make visual inspection of deflated tires very difficult . Very often, a 30% underinflated tire looks very much like a fully inflated one . A TPMS will make sure your tire pressure is at its proper level . A 9PSI drop in tire pressure will cause appoximately 4% increase in fuel consumption .

2.3 Prolong Lifetime of Tires
The following table shows a simple relationship between tire pressure and tire lifetime :

♣   Reliable and easy to install .

♣   Built-in rechargeable lithium battery .

♣   Automatic backlight .

♣   Automatically wakes hen vehicle starts moving .

♣   Configurable high/low prssure warnings .

♣   Configurable high temperature warnings .

♣   Visible and audible alerts .

♣   Selectable pressure units : PSI , BAR , Kgf/cm² .

♣   Monitors up to 8 tires maximum .

♣   Displays prssure and temperature of 4 tires simultaneously .

3.2 Sensor Features

♣  Internal valve sensor , adjustable sensor mounting angle .

♣  Water resistant .

♣  Sensors batteries will last up to five years .

♣  Sensors transmit pressure and temperature data every 5 minutes .

♣  Fast leakage alert .

♣  Individually coded sensors .

4. Sensor Installation Steps:

Unload the tire from the vehiche . Deflate and take the rubber tire outof the rim .Take out the valve on the rim and replace with the sensor.
