Core Patent
High conduction Cu-Mg-Al alloy shell
Patent light distribution lens
Rare earth heat dissipation material
Certification
CE, FCC, RoHS
Characteristics
1. High luminous efficiency and energy saving
2.Super environmental
3.Super long life time
4.More brightness
5.High color rendering index
6.Low power consumption
7.Quickly start, no flicker, no noise, eye protection
8.Big lighting angle, which can improve the luminous area effectively
9.Good function of heat dissipation, improving the lamp's lifetime
10.Easy to install
2. Guarantee Time: 3 years
Material
High conduction Cu-Mg-Al alloy shell; Optic glass lens with deep penetration of lighting and high refraction; Integrated high-power LED light source module with high-efficiency but low thermal resistance; Constant-current drive power supply with high-efficiency and long working lifetime.
Places Suitable
City road, pavement, square, school, park, courtyard, residential district, factory and other places needing street lighting.
Technical Parameter

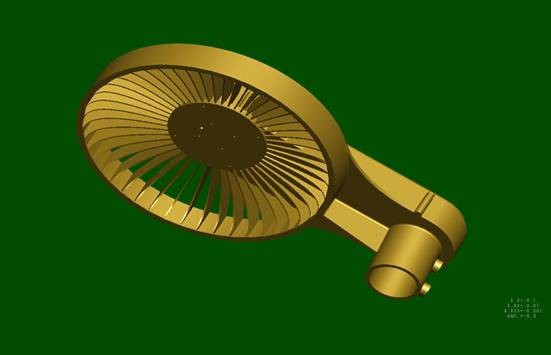

Name: 60w led street light
Power: 60W
Applicable scope of power: 60W-100W
Light Efficiency: 110lm/W
Luminous Flux: 6600Lm
I luminance Uniformity: >0.5
Color Rendering Index: 45-70
Color Temperature: 5500-6500k
Working Environment: - 40 degree to +45 degree
Humidity: 10% to 90%RH
Working Lifetime: >60000 Hrs
Storing Temperature: - 40 degree to +70 degree
Power Supply Efficiency: >0.96
Power Factor: 0.9
Energy Saving: 67%
Protection Grade: IP65/ IP67
Net Weight:
Input Voltage: AC 85-260V
Scope of the frequency: 50-60HZ
