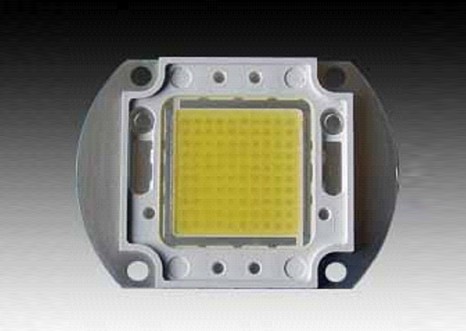

TECHNICAL CHARACTERISTICS OF HIGH LIGHT EFFICIENCY INTEGRATED ENCAPSULATION LIGHT SOURCE
Integrated module:Light source efficiency can reach 140LM/W by applying the technology from bridgelux.
Cooling module:Adopt copper substrate,uniform heat dissipation,high heat conduction index.
Surface process for substrate:Adopt silver-plated technology, low brightness decline,high light efficiency.
Light distribution technology: The patent light distribution lens has the controllable lighting;area,high luminous uniformity,low brightness decline,high light efficiency.
Power(W) |
Positive Voltage (V) |
Initial Light Efficiency(Im/w) |
Color Temperature(K) |
Color Rendering Index |
Angle |
Color |
30W |
30_32V |
90-140 lm/W |
2700-8000K |
65_85 |
120° |
|
40W |
30_32V |
90-140 lm/W |
2700-8000K |
65_85 |
120° |
|
50W |
30_32V |
90-140 lm/W |
2700-8000K |
65_85 |
120° |
|
60W |
30_32V |
90-140 lm/W |
2700-8000K |
65_85 |
120° |
|
70W |
30_32V |
90-140 lm/W |
2700-8000K |
65_85 |
120° |
|
80W |
30_32V |
90-140 lm/W |
2700-8000K |
65_85 |
120° |
|
90W |
30_32V |
90-140 lm/W |
2700-8000K |
65_85 |
120° |
|
100W |
30_32V |
90-140 lm/W |
2700-8000K |
65_85 |
120° |
