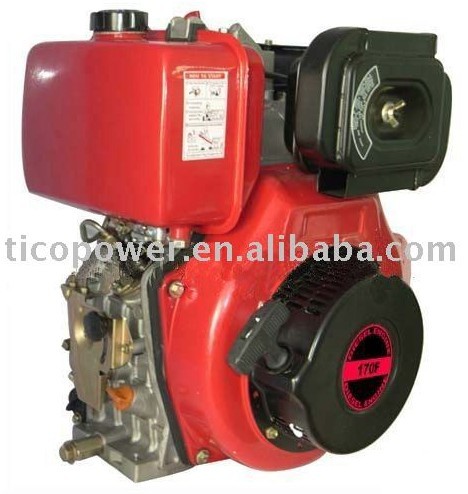

3.8HP Diesel Engine

Brand Name TICO POWER or OEM

1) Place of Origin Fujian, China (Mainland)

2) Price: FOB40-60USD/Set

3) Port: Fuzhou

4) Delivery Time: 20 Days

5) Payment Terms: L/C,T/T,by negotiation

6) Supply Ability: 6000 Set/Sets per Month

7) Minimum Order Quantity: 50 Set/SetsTrial Order

8) Color Customer colors available
9) Certification CE, EPA

10) 12Months Quality Warrarry

Usage used in generator set, power tiller, water pump sets, Ship motor, ect.

===================================

Specification

Model :  TD170F(E)

Bore*Stroke (mm*mm) :  70*55

Displacement (ml) :  211

Compression Ratio :  20:1

Engine Speed (rpm) : 3000/3600

Continuous Output (HP) :  3.8

Max Power Output(HP) : 4.2

Fuel Consumption (g/kw.h) :  295

Ignition Mode :  Compression-ignition

Start Model :  Recoil or Electric

Fuel Model :  0#(Summer), -10#(Winter)

Lube Model :  SAE 10w 30(Above CC Grade)

Oil Capacity (L) :  0.8

Fuel Tank Capacity :  2.5

Net Weight/With Motor (KGS) : 26(R)/31(E)

Gross Weight (KGS) :  28.5(R)/33.5(E)

Dimensions (L*W*H) mm :  410X365X435

Packing Size (L*W*H) mm :  425X380X455
