Brand Name TICO POWER or OEM
1) Place of Origin Fujian, China (Mainland)
2) Price: FOB40-60USD/Set
3) Port: Fuzhou
4) Delivery Time: 20 Days
5) Payment Terms: L/C,T/T,by negotiation
6) Supply Ability: 6000 Set/Sets per Month
7) Minimum Order Quantity: 50 Set/SetsTrial Order
8) Color Customer colors available
9) Certification CE, EPA
10) 12Months Quality Warrarry
Usage used in generator set, power tiller, water pump sets, Ship motor, ect.
===================================
Specification

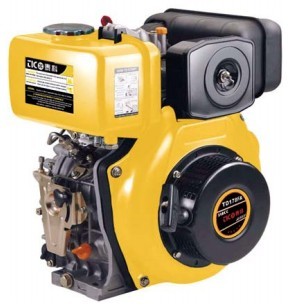

Model : TD170F(E)
Bore*Stroke (mm*mm) : 70*55
Displacement (ml) : 211
Compression Ratio : 20:1
Engine Speed (rpm) : 3000/3600
Continuous Output (HP) : 3.4
Max Power Output(HP) : 4.2
Fuel Consumption (g/kw.h) : 295
Ignition Mode : Compression-ignition
Start Model : Recoil or Electric
Fuel Model : 0#(Summer), -10#(Winter)
Lube Model : SAE 10w 30(Above CC Grade)
Oil Capacity (L) : 0.8
Fuel Tank Capacity : 2.5
Net Weight/With Motor (KGS) : 26(R)/31(E)
Gross Weight (KGS) : 28.5(R)/33.5(E)
Dimensions (L*W*H) mm : 410X365X435
Packing Size (L*W*H) mm : 425X380X455
