CAD5104F / CAD5108F / CAD5116F

Key Features

*H.264 video compression

*Powerful CMS features, which can manage 64 channels video

*BUILT-IN DDNS domain name,net-work access easier from

*Support mobile phone viewing:Windows Mobile/Symbian/iPhone/Android/BlackBerry

*Support IE browse ,centralized monitor and manage multiple network DVR via CMS Software

*Up to 8 simultaneously network viewing users

*Support Dual-stream

*Support SMTP,UPNP, DDNS,PPPOE,etc, protocols

*Support sending alarm information and screenshots by E-mail when external trigger alarm

*Six workers at the same time support the operation of preview,recording,playback,network transmission,

backup and mobile control

*Multi-language menu: Chinese, English, Thai, Russian, French, Spanish, etc. Max 20 languages

Data Sheet

Model#		CAD5104F	CAD5108F		CAD5116F
Video	Input	BNC*4,(1.0Vp-p,75ohm)	BNC*8,(1.0Vp-p,75ohm)		BNC*16,(1.0Vp-p,75ohm)
	CVBS Output	BNC1,(1.0Vp-p,75ohm), PAL: 704576, NTSC: 720*480
	VGA Output	VGA1, Resolution:1024768
Audio	Input	RCA*4	RCA*4		RCA*4
	Output	RCA*1	RCA*1		RCA*1
Recorder	Video/Audio Compression	H.264 Main Profile/ADPCM
	Frame Rate	CIF (PAL:25fps,NTSC:30fps)			CIF (PAL:25fps,NTSC:30fps)
		HD1(PAL:12fps,NTSC:15fps)
		D1 (PAL:6fps, NTSC:7fps)
	Pre recorder	Max 30 Seconds
	Image Quality	6 levels
Motion	Trigger Events	Recorder, PTZ, Alarm, E-mail
	Motion Detection	Configurable detection areas 352(22*16) and Sensitivity: 5 levels
	Video Loss	Support
Alarm	Input	4-ch	4-ch	4-ch
	Output	1-ch	1-ch	1-ch
Playback	Synchronous Playback	4-ch	8-ch	16-ch
	Search Mode	Date, Time, Event, Channel
Backup	Backup Mode	USB HDD, Network
Hard Disk	Interface Type	1 SATA interface
	Capacity	Each interface supports up to 2TB capacity
External Interface	Network Interface	1 RJ-45, 10/100Mbps self-adaptive Ethernet interface
	USB Interface	2 USB2.0
	RS485 Interface	1 RS-485 interface (for PTZ control)
Other	Power Supply	12V/3A
	Power Consumption (without hard disk)	<12W
	Working Temperature	-10~+55 Degrees
	Working Humidity	10%~90%
	Dimension	330(L)260(W)50(H) mm
	Weight(without hard disk)	2.6KG

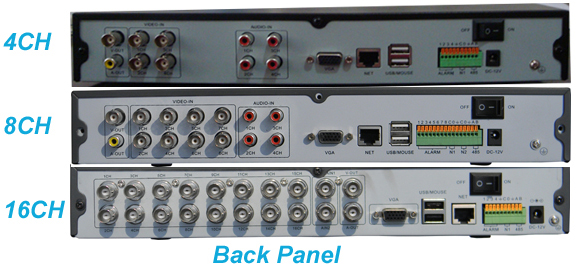

DVR Back Panel
