4/8CH ALL IN ONE DVR
CAD9204DL / CAD9208DL
Feature

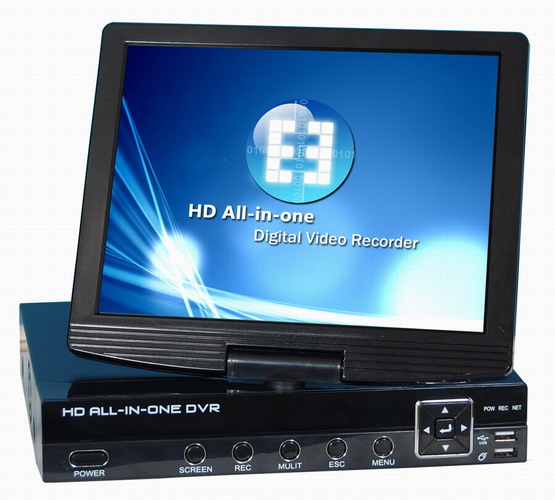

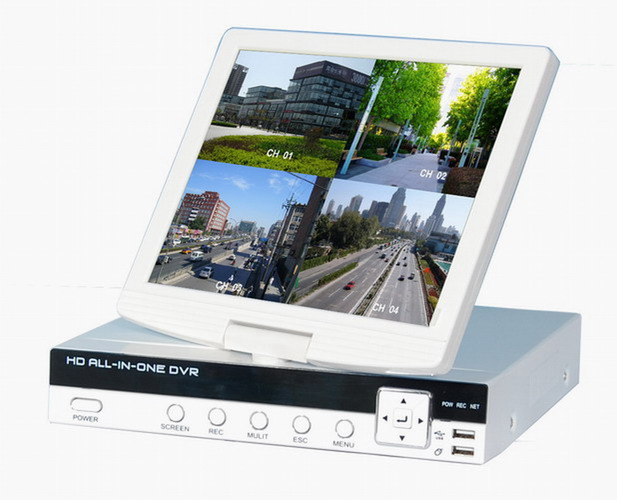

*Creative all-in-one design, screen panel control 270 degrees revolving and 180 degrees turn over |
*Integrate 10.5 inch digital LCD with resolution is 1024*768 |
*H.264 compression format. |
*Support mobile phone viewing:Windows Mobile,Symbian,iPhone,Android,BlackBerry |
*Video and audio real time recording and playback at the same time. |
*Support HD VGA output,solution:1280*1024 |
*Searching modes: time ,data searching, event searching, recording group searching |
*Support RS-485 PTZ control(speed dome camera), and preset positions operation |
*Support USB mouse and infrared remote controller operation |
*Multiplex operation: preview,recording,playback,network transmission can be operated at the same time |
*Multi-language menu:English ,German, French, Spanish, Italian, Russian, Portuguese..... |
Date Sheet
Model# | CAD9204DL | CAD9208DL | |

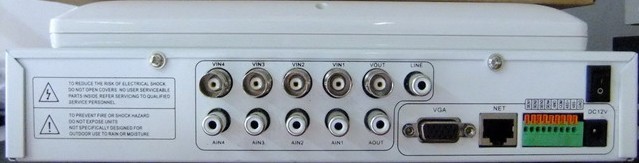

Video | Input | BNC*4,(1.0Vp-p,75ohm) | BNC*8,(1.0Vp-p,75ohm) |
LCD | 10.5 inch (Resolution:1024X768) | ||
CVBS Output | BNC*1,(1.0Vp-p,75ohm),PAL: 704*576,NTSC:720*480 | ||
VGA Output | VGA*1, Resolution:1280X1024 | ||
Audio | Input | RCA*4 | RCA*8 |
Output | RCA*1 | RCA*1 | |
Recording | Video/Audio Compression | H.264 Main Profile/ADPCM | |
Frame Rate | CIF (PAL:25fps,NTSC:30fps),PAL:352x288(CIF);NTSC:352x240(CIF) | ||
Pre recorder | Max 30 Seconds | ||
Image Quality | 6 levels | ||
Motion | Trigger Events | Recorder,PTZ,Alarm,E-mail | |
Motion Detection | Configurable detection areas 352(22*16) and Sensitivity:5 levels |
||
Video Loss | Support | ||
Alarm | Input | 4-ch | 4-ch |
Output | 1-ch | 1-ch | |
Playback | Synchronous Playback | 4-ch | 8-ch |
Search Mode | Date,Time,Event,Channel | ||
Backup | Backup Mode | USB HDD,Network | |
Hard Disk | Interface Type | 1 SATA interface | |
Capacity | Each interface supports up to 2TB capacity | ||
External Interface | Network Interface | 1 RJ-45, 10/100Mbps self-adaptive Ethernet interface | |
USB Interface | 2 USB2.0 | ||
RS485 Interface | 1 RS-485 interface (for PTZ control) | ||
Other | Power Supply | 12V/3A | |
Power Consumption (without hard disk) |
<=12W | ||
Working Temperature | -10~+55 D | ||
Working Humidity | 10%~90% | ||
Dimension | 260(L)*220(W)*70(H) mm | ||
Weight(without hard disk) | 2.6KG |
