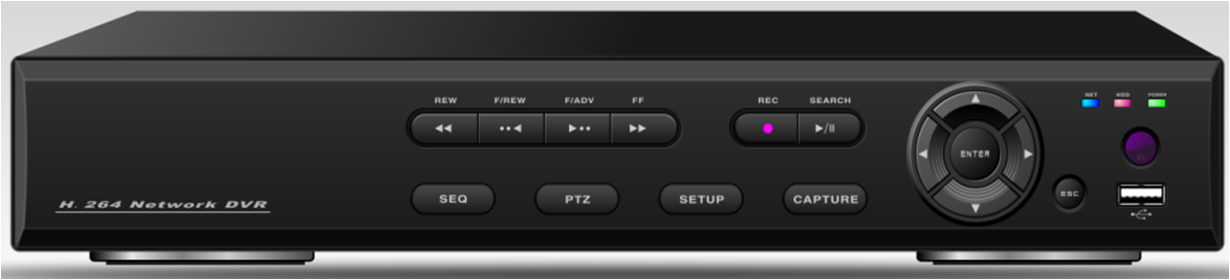

4/8/16CH H.264 DVR CAD5104E / CAD5108E / CAD5116E Key Features |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*Powerful CMS features, which can manage 64 channels video |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*BUILT-IN DDNS domain name,net-work access easier from |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*Support mobile phone viewing:Windows Mobile/Symbian/iPhone/Android/BlackBerry |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*Support IE browse ,centralized monitor and manage multiple network DVR via CMS Software |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*Up to 8 simultaneously network viewing users |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*Support Dual-stream |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*Support SMTP,UPNP, DDNS,PPPOE,etc, protocols |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*Support sending alarm information and screenshots by E-mail when external trigger alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*Six workers at the same time support the operation of preview,recording,playback,network transmission, backup and mobile control |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*Multi-language menu: Chinese, English, Thai, Russian, French, Spanish, etc. Max 20 languages Data Sheet Model# CAD5104E CAD5108E CAD5116E Video Input BNC*4,(1.0Vp-p,75ohm) BNC*8,(1.0Vp-p,75ohm) BNC*16,(1.0Vp-p,75ohm) CVBS Output VGA Output VGA*1, Resolution:1024*768 Audio Input RCA*4 RCA*4 RCA*4 Output RCA*1 RCA*1 RCA*1 Recorder Video/Audio Compression H.264 Main Profile/ADPCM Frame Rate CIF (PAL:25fps,NTSC:30fps) CIF (PAL:25fps,NTSC:30fps) HD1(PAL:12fps,NTSC:15fps) D1 (PAL:6fps, NTSC:7fps) Pre recorder Max 30 Seconds Image Quality 6 levels Motion Trigger Events Recorder, PTZ, Alarm, E-mail Motion Detection Configurable detection areas 352(22*16) and Sensitivity: 5 levels Video Loss Support Alarm Input 4-ch 4-ch 4-ch Output 1-ch 1-ch 1-ch Playback Synchronous Playback 4-ch 8-ch 16-ch Search Mode Date, Time, Event, Channel Backup Backup Mode USB HDD, Network Hard Disk Interface Type 1 SATA interface Capacity Each interface supports up to 2TB capacity External Interface Network Interface 1 RJ-45, 10/100Mbps self-adaptive Ethernet interface USB Interface 2 USB2.0 RS485 Interface 1 RS-485 interface (for PTZ control) Other Power Supply 12V/ Power Consumption <12W Working Temperature -10~+55 Degrees Working Humidity 10%~90% Dimension 330(L)*260(W)*50(H) mm Weight(without hard disk)
|
