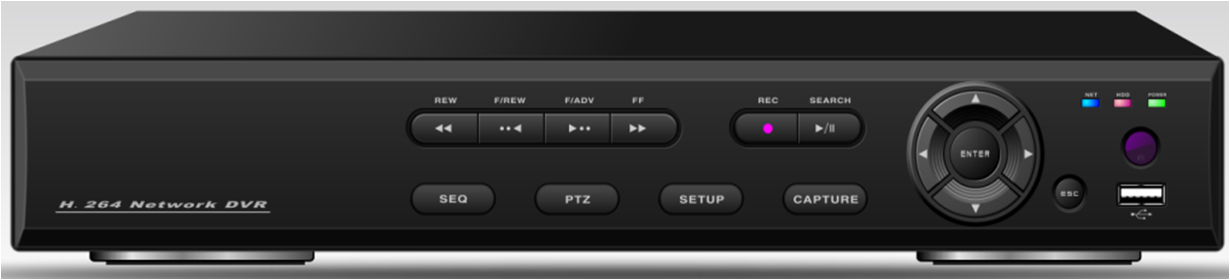

FULL D1 4/8CH H.264 DVR

CAD3104F / CAD3108F

Key Features

*H.264 Video compression

*D1 real-time recording

*HDMI Output: HDMI*1,Resolution: 1920*1080

*Powerful CMS features, which can manage 64 channels video

*BUILT-IN DDNS domain name,net-work access easier from

*Support mobile phone viewing:Windows Mobile/Symbian/iPhone/Android/BlackBerry

*Support IE browse ,centralized monitor and manage multiple network DVR via CMS Software

*Up to 8 simultaneously network viewing users

*Support Dual-stream

*Support SMTP,UPNP, DDNS,PPPOE,etc, protocols

*Support sending alarm information and screenshots by E-mail when external trigger alarm

*Six workers at the same time support the operation of preview,recording,playback,network transmission,

backup and mobile control

*Multi-language menu: Chinese, English, Thai, Russian, French, Spanish, etc.Max 20 languages

Data Sheet

Model#		CAD3104F	CAD3108F
Video	Input	BNC*4,(1.0Vp-p,75ohm)	BNC*8,(1.0Vp-p,75ohm)
	CVBS Output	BNC1,(1.0Vp-p,75ohm), PAL: 704576, NTSC: 720*480
	VGA Output	VGA1, Resolution:1024768 (1280*1024 optional)
	HDMI Output	NO	HDMI1, Resolution: 19201080 (optional)
Audio	Input	RCA*4	RCA*8
	Output	RCA*1	RCA*1
Recorder	Video/Audio Compression	H.264 Main Profile/ADPCM
	Frame Rate	D1 (PAL:25fps,NTSC:30fps) HD1(PAL:25fps,NTSC:30fps) CIF (PAL:25fps,NTSC:30fps)
	Pre recorder	Max 30 Seconds
	Image Quality	6 levels
Motion	Trigger Events	Recorder, PTZ, Alarm, E-mail
	Motion Detection	Configurable detection areas 352(22*16) and Sensitivity: 5 levels
	Video Loss	Support
Alarm	Input	4-ch	8-ch
	Output	1-ch	1-ch
Playback	Synchronous Playback	4-ch	8-ch
	Search Mode	Date, Time, Event, Channel
Backup	Backup Mode	USB HDD, Network
Hard Disk	Interface Type	1 SATA interface
	Capacity	Each interface supports up to 2TB capacity
External Interface	Network Interface	1 RJ-45, 10/100Mbps self-adaptive Ethernet interface
	USB Interface	2 USB2.0
	RS485 Interface	1 RS-485 interface (for PTZ control)
Other	Power Supply	12V/3A
	Power Consumption (without hard disk)	<=12W
	Working Temperature	-10~+55 Degrees
	Working Humidity	10%~90%
	Dimension	330(L)260(W)50(H) mm
	Weight(without hard disk)	2.6KG
