16CH H.264 DVR
CAD5316P / CAD5116P / CAD5116E/F
Key Features
| *H.264 video compression |
| *Powerful CMS features, which can manage 64 channels video |
| *Support 16 channels HDI,D1 Non-Real-time playback (Only for CAD5316P) |
| *Support 16 channels audio(Only for CAD5316P) |
| *Support VGA output resolution: 1280*1024 (Only for CAD5316P) |
| *BUILT-IN DDNS domain name,net-work access easier from |
| *Support mobile phone viewing:Windows Mobile/Symbian/iPhone/Android/BlackBerry |
| *Support IE browse ,centralized monitor and manage multiple network DVR via CMS Software |
| *Up to 8 simultaneously network viewing users |
| *Support Dual-stream |
| *Support SMTP,UPNP, DDNS,PPPOE,etc, protocols |
| *Support sending alarm information and screenshots by E-mail when external trigger alarm |
| *Six workers at the same time support the operation of preview,recording,playback,network transmission,backup and mobile control |
| *Multi-language menu: Chinese, English, Thai, Russian, French, Spanish, etc.Max 20 languages |
Data Sheet
|
Model # |
CAD5316P |
CAD5116P |
CAD5116E/F |
|
|
Video |
Input |
BNC*16,(1.0Vp-p,75ohm) |
||
|
CVBS Output |
BNC*1,(1.0Vp-p,75ohm),PAL:704*576,NTSC:720*480 |
|||
|
VGA Output |
VGA*1 (1280*1024) |
VGA*1 (1024*768) |
VGA*1 (1024*768) |
|
|
Audio |
Input |
RCA*16 |
RCA*4 |
RCA*2 |
|
Output |
RCA*1 |
RCA*1 |
RCA*1 |
|
|
Recorder |
Video/Audio Compression |
H.264 Main Profile/ADPCM |
||
|
Frame Rate |
CIF(PAL:25fps,NTSC:30fps) |
CIF(PAL:25fps,NTSC:30fps) |
||
|
HD1(PAL:12fps,NTSC:15fps) |
||||
|
D1 (PAL:6fps, NTSC:7fps) |
||||
|
Pre recorder |
Max 30 Seconds |
|||
|
Image Quality |
6 levels |
|||
|
Motion |
Trigger Events |
Recorder, PTZ, Alarm, E-mail |
||
|
Motion Detection |
Configurable detection areas 352(22*16) and Sensitivity:5 levels |
|||
|
Video Loss |
Support |
|||
|
Alarm |
Input |
8-ch |
4-ch |
4-ch |
|
Output |
1-ch |
1-ch |
1-ch |
|
|
Playback |
Synchronous Playback |
16-ch |
16-ch |
16-ch |
|
Search Mode |
Date, Time, Event, Channel |
|||
|
Backup |
Backup Mode |
USB HDD, Network |
||
|
Hard Disk |
Interface Type |
2 SATA interface |
1SATA interface |
|
|
Capacity |
Each interface supports up to 2TB capacity |
|||
|
External Interface |
Network Interface |
1 RJ-45, 10/100Mbps self-adaptive Ethernet interface |
||
|
USB Interface |
2 USB2.0 |
|||
|
RS485 Interface |
1 RS-485 interface (for PTZ control) |
|||
|
Other |
Power Supply |
12V/4A |
12V/3A |
12V/3A |
|
Power Consumption |
<=20W |
|||
|
Working Temperature |
-10~+55 Degrees |
|||
|
Working Humidity |
10%~90% |
|||
|
Dimension |
380(L)*300(W)*55(H) mm |
330(L)*260(W)*50(H) mm |
||
|
Weight |
3.0KG |
2.6kg |
||

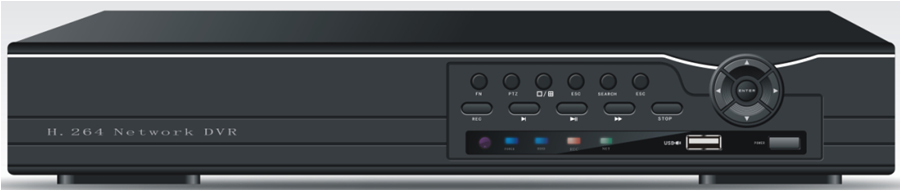

CAD5316P

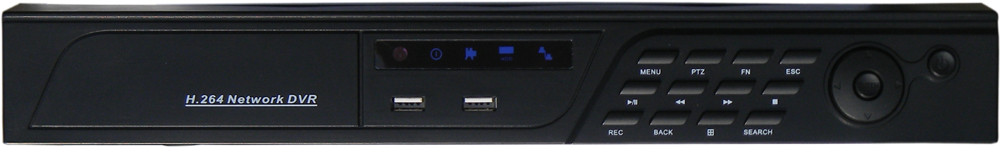

CAD5116P

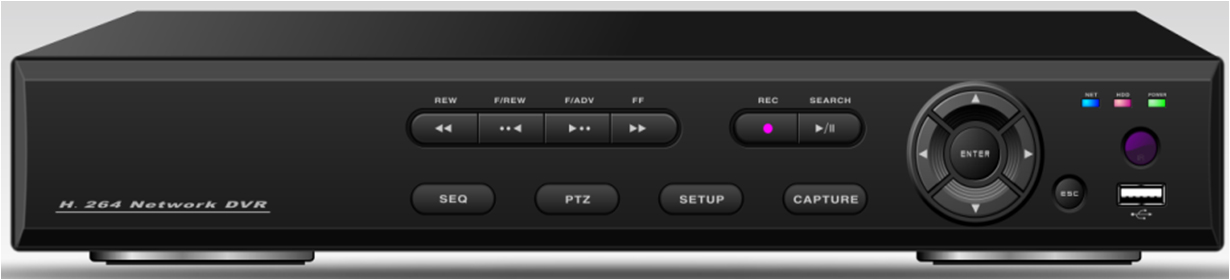

CAD5116E/F
