1. For measuring the torque setting of electric screwdrivers,torque drivers and torque wrenches.
2. For inspecting the torque of electric screwdrivers, torque drivers, and wrenches, as well as for laboratory inspection and function control.
3. For many other applications for which jig tools are devised.
(examples)
For collecting data on holes diameters prepared for tapping screws. For torque classifiers of rotating parts.
For controlling bottle cap fastening. For testing breakdown of small parts.
For quality control of plastic screws and parts.
Model |

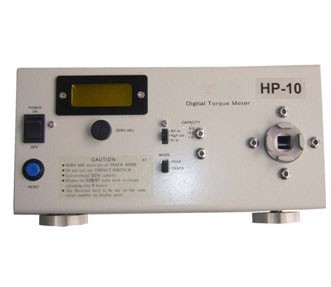

HP-10 |
HP-20 |
HP-50 |
HP-100 |
The largest Lbf.in measuring Kgf.cm range N.m |
0.15-9.00 1.5-10.00 0.015-1.0 |
0.15-18.00 1.5-20.00 0.015-2.0 |
1.5-45 1.5-50 0.15-5.0 |
1.5-90 1.5-100 0.15-10.0 |
Accuracy |
Within ±1% |
|||
Measuring value |
Track value, peak value |
|||
Diameter of measure tray |
Max153mm----Min5.6mm |
|||
Power supply |
1.2v battery*5pcs |
|||
Battery life |
More than 500 times for recharge |
|||
Recharge time |
5-7hours |
|||
Working time |
More than 30 hours |
|||
Special charger |
Input:AC100-120V 50Hz /220-240V 60 Hz Output:DC7.2V 120mA |
