Usage:
1.Jewelry and gold watches, such as ring, necklace, ear-ring, watch, etc.
2.Personal objects for daily use, including glasses, contact lens, combs, toothbrush, knife and fork.
3.Other items, such as computer printer head, hospital and medical equipments, electronical machinery parts, scientific-testing, etc.
4.Cleans and removes all types of dirt and grease, sterilizes.
Principle:

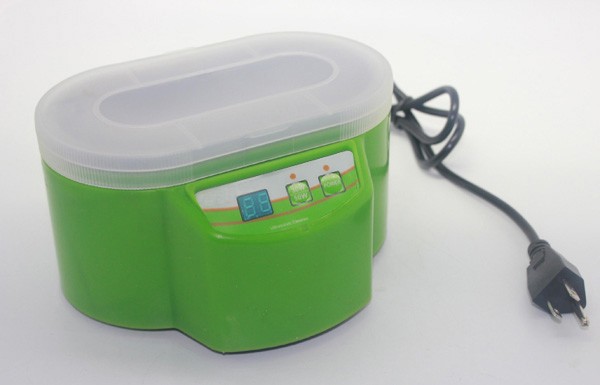

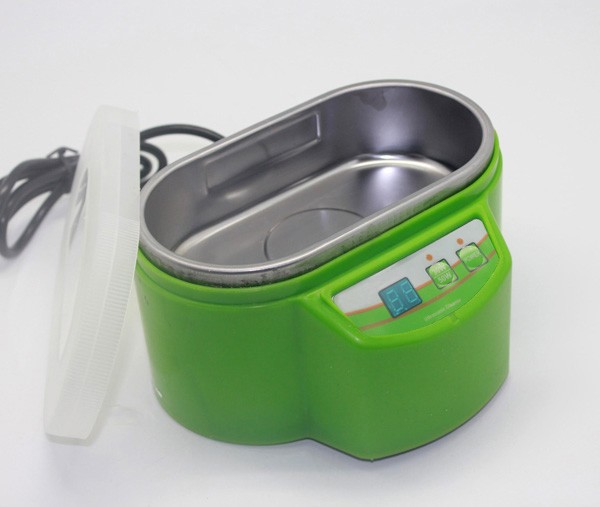

1.Ultrasonic cleaner uses the oscillator signal sent by ultrasonic to produce the so-called cavitation effect,which makes liquid flow to produce millions of bubbles.Bubbles continiue striking, so dirt could be slipt into the washing liquid, and stuffs cleaned.
2.Pour right amount of rinse liquid into bath and ensure the stuff cleaned in the liquid. Amount of detergent if necessary.
Note:It's suitable that the amount of rinse liquid is about 2/3 of bath capacity.
(4)Don't leave liquid in bath for a long time after cleaning, to protect the bottom of bath from being eroded.
Size(inner bath): 165mm*85mm*40mm(L/W/H)
Size(outter bath): 175mm*95mm*50mm(L/W/H)
Packing specification: 215mm*170mm*125mm(L/W/H)
N.W:0.65KG G.W:0.85KG
|
Model |
Power consumption |
Power |
Ultrasonic Frequency |
|
BST-9030 |
30W |
220V±10% |
45KHz |
|
BST-9050 |
30W/50W |
