Basic voltage DC Accuracy: ±0.5%Function: Data hold, Frequency/Duty ratio and on/off warning, with back light display.
Testing: voltage DC, voltage AC, Resistance, Capacitance, Diode testing.
Body color, body-metal gray: shake-proof cap: yellow or red
Body weight:BST-60 A/310g,BEST-60B/320g
Standard accessories: meter pen ,battery, instruction, Eligible Certificate
Standard inner packing: color box
30units Standard quantity of packing:30 units
Dimension outer packing:52*35*46mm

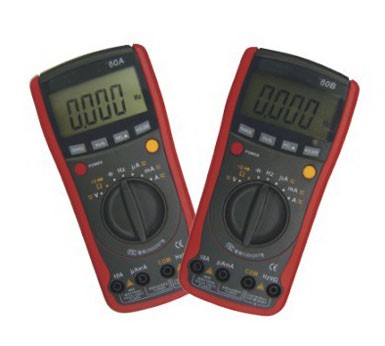

BST-60A,60B 3 3/4 digital multi-meter technical indicators
Basic Function |
Range |
Basic precision |
|
60A |
60B |
||
Voltage DC |
400Mv/4V/40V/400V/1000V |
±(0.8%+1) |
±(0.8%+1) |
Voltage AC |
4V/40V/400V/750V |
±(1%+5) |
±(1%+5) |
Direct current |
400Ua/4000Ua/40mA/400Ma/4A/10A |
±(1%+2) |
±(1%+2) |
Alternating current |
400Ua/4000Ua/40mA/400Ma/4A/10A |
±(1.5%+5) |
±(1.5%+5) |
Resistance |
400/4k/40k/400k/4M/40M |
±(1 %+2) |
±(1 %+2) |
Capacitance |
40nf/400nF/4uF/40Uf/100uF |
±(3 %+5) |
±(3 %+5) |
Frequency |
10Hz~10MHz |
±(0.1 %+3) |
±(0.1 %+3) |
Duty Ratio |
0.1%~99.9% |
√ |
√ |
Special function |
|||
10A fuse |
|
√ |
√ |
Relative measurement |
|
√ |
√ |
Diode testing |
|
√ |
√ |
on/off warning |
|
√ |
√ |
Full symbol display |
|
√ |
√ |
Sleeping function |
|
√ |
√ |
Hint of low battery |
|
√ |
√ |
Input impendance of voltage measurement |
10M |
√ |
√ |
Data hold |
|
√ |
√ |
Automatic measurement |
|
√ |
√ |
Selection of automatic and manual drive |
|
√ |
√ |
Apheliotropism |
|
√ |
√ |
Shake-proof protection |
|
√ |
√ |
Power supply |
9V battery(6F22) |
√ |
√ |
Maximum display |
3999 |
√ |
√ |
Auto power off |
|
√ |
√ |
Display size |
66mm*39mm |
√ |
√ |
