Home>>Products Show > Machine > Burr-free Hexagonal Screw Milling Machine ZX3-8

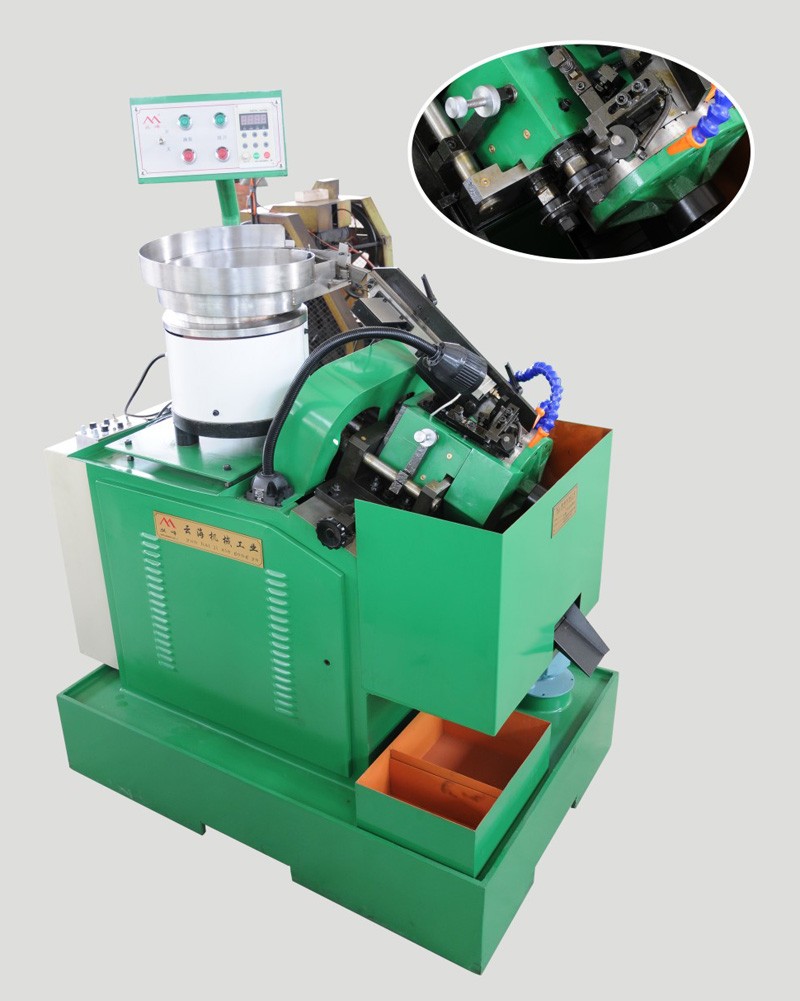

Burr-free Hexagonal Screw Milling Machine ZX3-8

Burr-free Hexagonal Screw Milling Machine ZX3-8
Original Image
Products Visitors:1436
  • Product Name:Burr-free Hexagonal Screw Milling Machine ZX3-8

Burr-free Hexagonal Screw Milling Machine
Function Double Cutter Burr-free Milling Machine
/ Automatic Orientation Milling
/ Automatic Feeding System
/ Frequency adjusted Feeding System
Model ZX3-8
Net Weight 520KG
Main Motor 0.75KW,1.10KW
Outer Dimension 1100mm x 750 x 1250mm
Minutely Output 40-100pcs
Specifiction of Cutter Outer Diameter:45mm-50mm,Inner Bore Diameter:16mm,Thickness:0.4mm-3.0mm
Processing Range Outer Diameter:2.5mm-10mm,Bar Length:5mm-16mm
