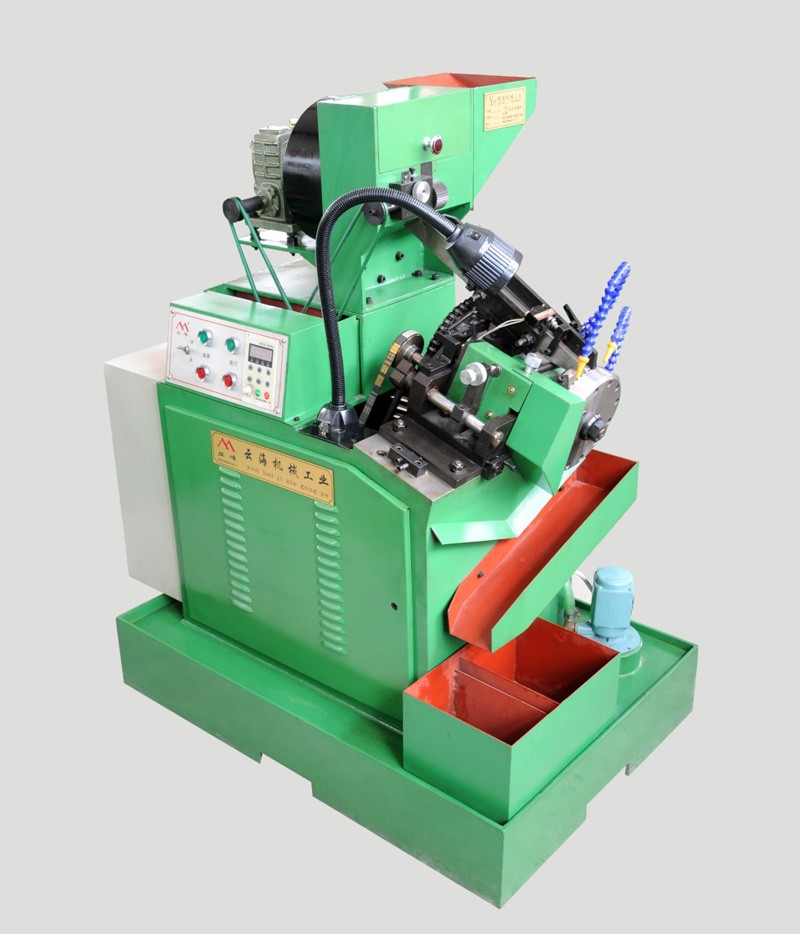

Burr-Free Screw Milling Machine ZX1-4

Burr-Free Screw Milling Machine ZX1-4
Original Image
Products Visitors:1317
  • Product Name:Burr-Free Screw Milling Machine ZX1-4

Burr-Free Screw Milling Machine
Function Double Cutter Burr-free Milling Machine
/ Waive Subsequent Burring Process
/ Humanization Design and Simplicity of Operation
/ Frequency adjusted Feeding System
Model ZX1-4
Net Weight 320KG
Main Motor 2 x 0.55KW
Outer Dimension 900mm x 600mm
Minutely Output 60-100pcs
Specifiction of Cutter Outer Diameter:30mm-40mm,Inner Bore Diameter:13mm,Thickness:0.3mm-1.0mm
Processing Range Outer Diameter:1.0mm-4.0mm,Bar Length:1.2mm-25mm
