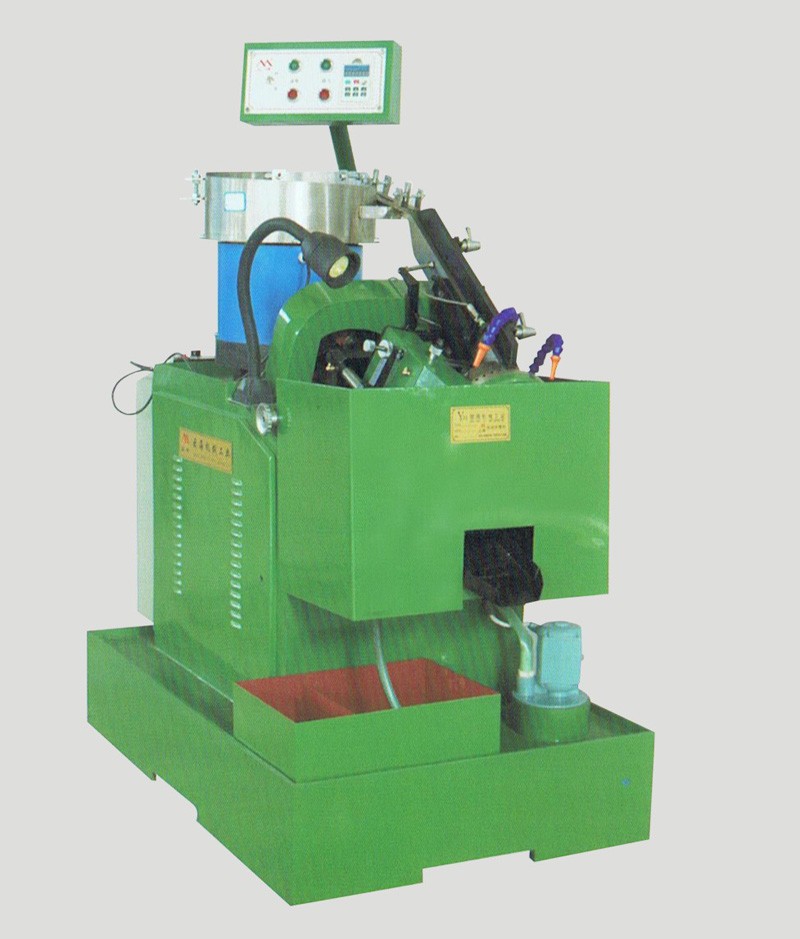

Burr-Free Screw Milling Machine YX3-10

Burr-Free Screw Milling Machine YX3-10
Original Image
Products Visitors:1504
  • Product Name:Burr-Free Screw Milling Machine YX3-10

Burr-Free Screw Milling Machine
Function Double Cutter Burr-free Milling Machine
/ Waive Subsequent Burring Process
/ Humanization Design and Simplicity of Operation
/ Frequency adjusted Feeding System
Model YX3-10
Net Weight 518KG
Main Motor 0.75KW,1.10KW
Outer Dimension 1100mm x 750 x 1250mm
Minutely Output 30-90pcs
Specifiction of Cutter Outer Diameter:45mm-50mm,Inner Bore Diameter:16mm,Thickness:0.4mm-3.0mm
Processing Range Outer Diameter:2.5mm-8.0mm,Bar Length:3.5mm-50mm
