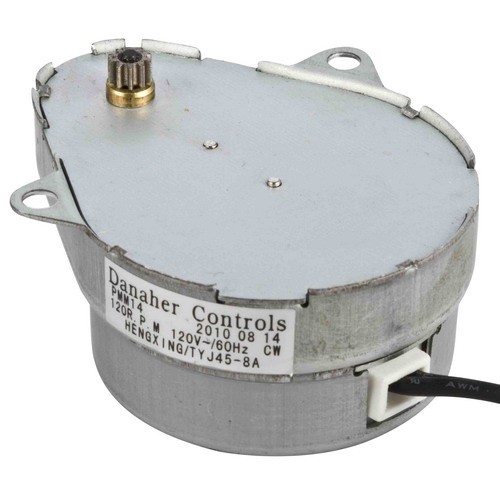

1.Product characteristic: This Micro motor is combined with permanent magnetic synchronous motor and a gear box. The advantages are tiny construction, lower power, low noise level and large output torque. It's rotation direction is random but can be control by applying direction control system.
2. Major applications:widely used in control electrical appliance, timers, air conditioners, electric fans, stage lightings, electric models, electric commercial advertisements and etc.
3. Major technical data:
(Rated voltage) |
(V) |
12V-240V |
(Rated frequency) |
(Hz) |
50/60Hz |
(Input power) |
(W) |
≤4W |
(Insulation class) |
(class) |
A |
rotation speed |
(r/min) |
0.02-120 r/min |
Certification |
UL |
Remarks:motor output shaft can be custom-made.
